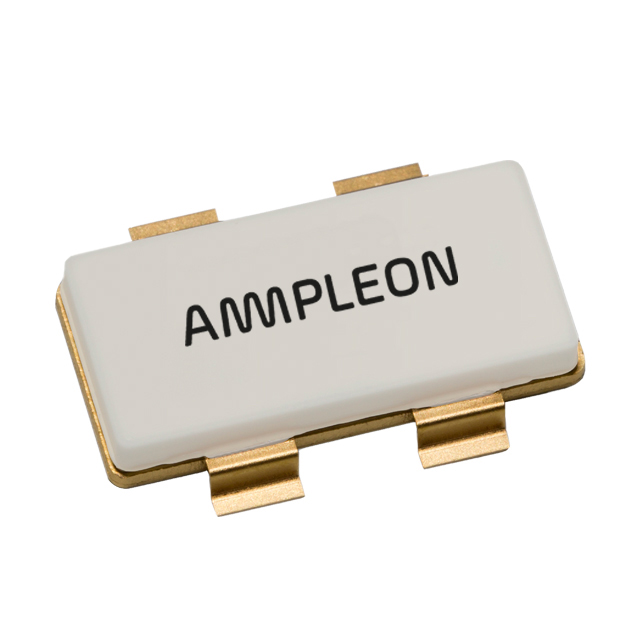

BLF6G27LS-40PGJ
RF MOSFET LDMOS 28V CDFM4Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. presents the BLF6G27LS-40PGJ, a high-performance LDMOS RF power transistor. This dual, common source device operates within the 2.5 GHz to 2.7 GHz frequency range, delivering 12W of output power with a typical gain of 17.5 dB. Engineered for demanding RF applications, it is rated for a 65V drain-source voltage, with testing performed at 28V and 450mA. The BLF6G27LS-40PGJ utilizes the CDFM4 package, specifically SOT-1121E, for efficient thermal management and mounting via chassis mount. This component is well-suited for base station infrastructure and other high-frequency power amplification systems. Supplied on tape and reel (TR) for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1121E |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 2.5GHz ~ 2.7GHz |
| Configuration | Dual, Common Source |
| Power - Output | 12W |
| Gain | 17.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM4 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 450 mA |
