BLF6G27L-50BN,118
RF MOSFET LDMOS 28V CDFM6Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

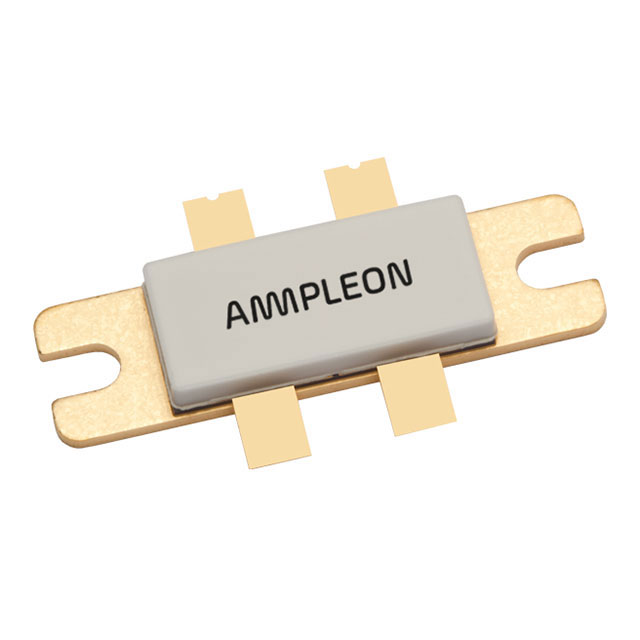

Ampleon USA Inc. BLF6G27L-50BN-118 is a 28V LDMOS RF power transistor designed for high-performance applications. This device operates within the 2.5GHz to 2.7GHz frequency range, delivering 3W of output power with 16.5dB of gain. It features a dual, common-source configuration in a CDFM6 package, suitable for chassis mounting. The BLF6G27L-50BN-118 is fabricated using LDMOS technology, offering excellent performance characteristics for demanding RF power amplification tasks. This component is commonly utilized in base station infrastructure and other wireless communication systems. The device is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1112A |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 2.5GHz ~ 2.7GHz |
| Configuration | Dual, Common Source |
| Power - Output | 3W |
| Gain | 16.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM6 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 430 mA |
