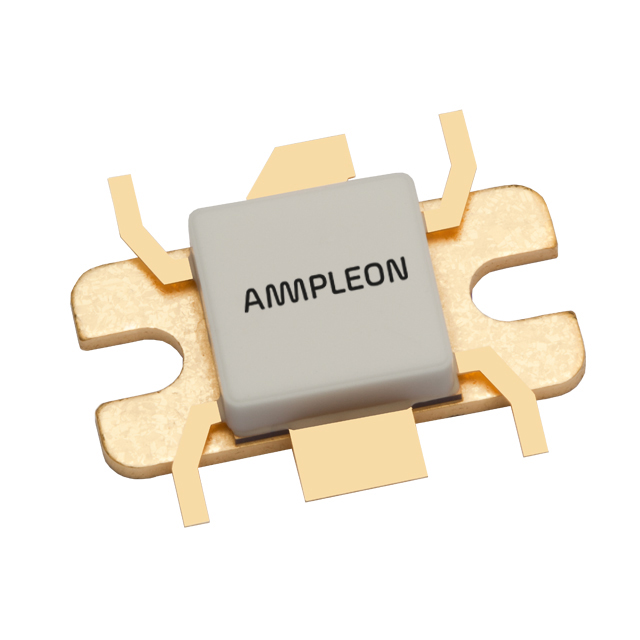

BLF6G27L-50BN,112
RF MOSFET LDMOS 28V CDFM6Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon's BLF6G27L-50BN-112 is a 28V LDMOS power transistor designed for high-frequency applications. This dual, common source device offers 3W of output power with a typical gain of 16.5dB across a frequency range of 2.5GHz to 2.7GHz. The transistor utilizes a CDFM6 package, also known as SOT-1112A, suitable for chassis mounting. It is rated for a breakdown voltage of 65V, with a test voltage of 28V and a test current of 430mA. This component is well-suited for use in base station infrastructure and high-power RF systems. It is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-1112A |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 2.5GHz ~ 2.7GHz |
| Configuration | Dual, Common Source |
| Power - Output | 3W |
| Gain | 16.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM6 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 430 mA |
