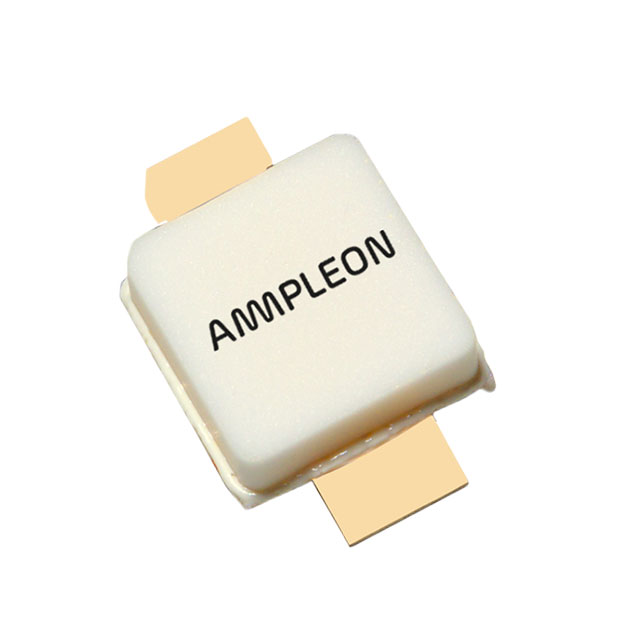

BLF6G27-10,118
RF MOSFET LDMOS 28V CDFM2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLF6G27-10-118 is a 28V LDMOS RF power transistor designed for high-frequency applications. This component operates within the 2.5GHz to 2.7GHz frequency range, delivering 2W of output power with a typical gain of 19dB. Tested at 28V and 130mA, it features a robust 65V breakdown voltage and a 3.5A current rating. The BLF6G27-10-118 is housed in a CDFM2 package (SOT-975B) and is supplied on tape and reel for automated assembly. Its LDMOS technology ensures excellent linearity and efficiency, making it suitable for use in base station infrastructure and other demanding wireless communication systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-975B |
| Current Rating (Amps) | 3.5A |
| Mounting Type | Chassis Mount |
| Frequency | 2.5GHz ~ 2.7GHz |
| Power - Output | 2W |
| Gain | 19dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 130 mA |
