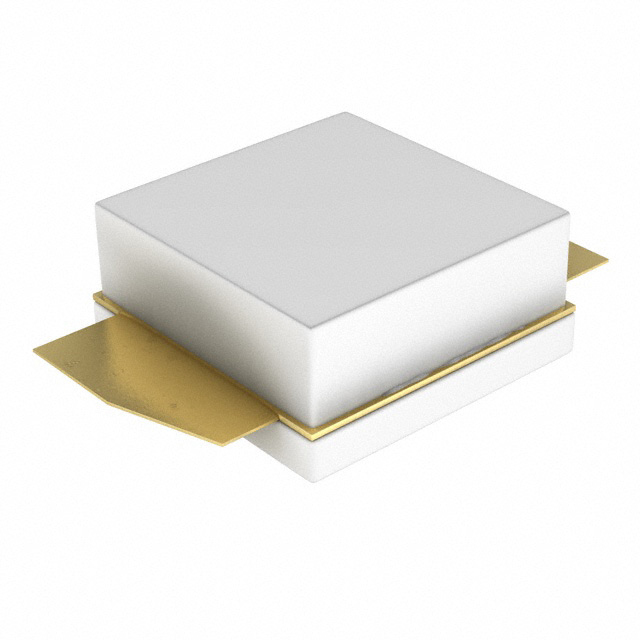

BLF6G20S-45,118
RF MOSFET LDMOS 28V CDFM2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLF6G20S-45-118 is a 28V LDMOS RF power transistor designed for high-frequency applications. This device operates within the 1.8GHz to 1.88GHz frequency range, delivering a typical gain of 19.2dB and an output power of 2.5W at a 360mA test current. The transistor utilizes CDFM2 packaging, SOT-608B case, and is supplied in Tape & Reel (TR). Its robust design supports a rated voltage of 65V, making it suitable for demanding wireless infrastructure, base stations, and professional mobile radio systems. The BLF6G20S-45-118 is characterized by its LDMOS technology for efficient power amplification in its class.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-608B |
| Current Rating (Amps) | 13A |
| Mounting Type | Chassis Mount |
| Frequency | 1.8GHz ~ 1.88GHz |
| Power - Output | 2.5W |
| Gain | 19.2dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 360 mA |
