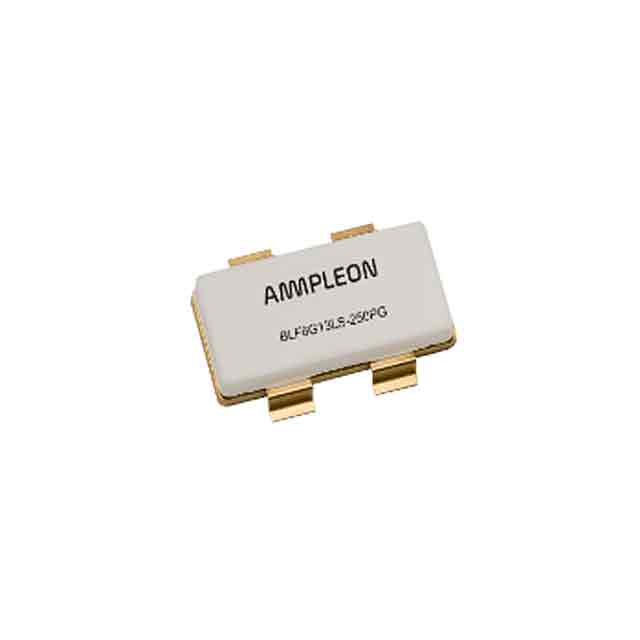

BLF6G13LS-250PGJ
RF FET LDMOS 100V 17DB SOT1121EManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLF6G13LS-250PGJ is a high-power LDMOS RF power transistor designed for robust performance in demanding applications. This device operates at 1.3GHz, delivering a 17dB gain and a significant 250W output power. It features a 100V breakdown voltage with a test voltage of 50V and a test current of 100mA, characteristic of its LDMOS technology. The BLF6G13LS-250PGJ is supplied in the SOT-1121E package, also known as CDFM4, and is available in Cut Tape (CT) packaging for automated assembly. Its specifications make it suitable for use in industrial, medical, and defense communication systems where reliable high-frequency power amplification is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SOT-1121E |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.3GHz |
| Power - Output | 250W |
| Gain | 17dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM4 |
| Voltage - Rated | 100 V |
| Voltage - Test | 50 V |
| Current - Test | 100 mA |
