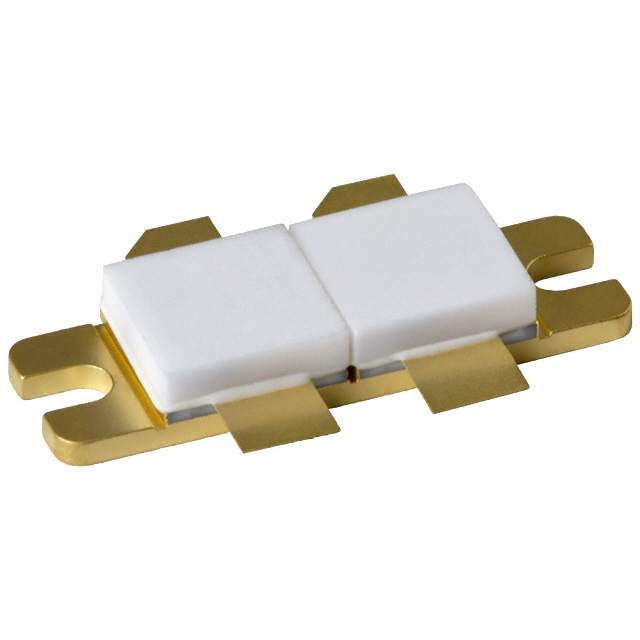

BLF548,112
RF MOSFET 28V CDFM4Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. offers the BLF548-112, an RF MOSFET designed for high-power applications. Operating at a 28V test voltage, this component delivers 150W of output power at 500MHz, with a typical gain of 11dB. The device features a 2 N-Channel common source configuration and is housed in a CDFM4 (SOT-262A2) package for chassis mounting. Its robust construction and 65V voltage rating make it suitable for demanding RF power amplifier circuits within the broadcast and industrial sectors. The BLF548-112 is supplied in trays for efficient integration into manufacturing processes.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-262A2 |
| Current Rating (Amps) | 15A |
| Mounting Type | Chassis Mount |
| Frequency | 500MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 150W |
| Gain | 11dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | CDFM4 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 160 mA |
