BLF546,112
RF MOSFET 28V CDFM4Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

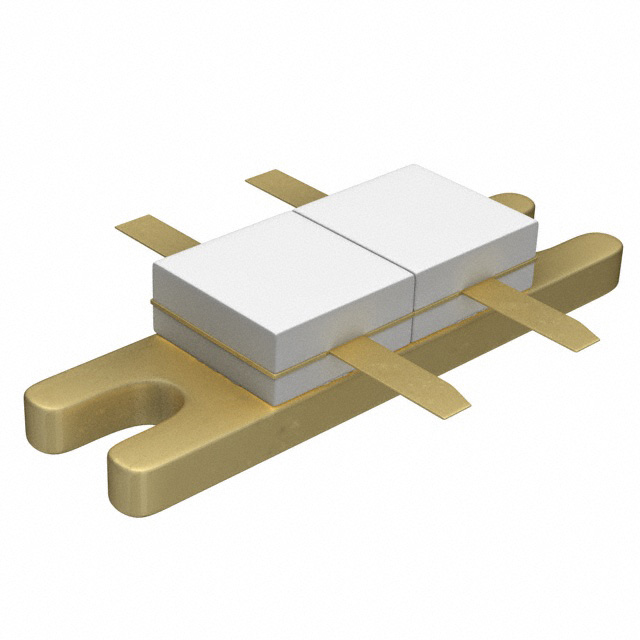

Ampleon USA Inc. BLF546-112 is a high-power RF MOSFET designed for demanding applications. This dual N-channel device, configured in common source, operates at 500MHz, delivering 80W of output power with a 13dB gain. Featuring 28V test voltage and 65V rated voltage, it handles a 9A current rating with an 80mA test current. The BLF546-112 is housed in a CDFM4 (SOT-268A) package, suitable for robust thermal management. This RF power transistor finds application in base station infrastructure and broadcast transmitters.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-268A |
| Current Rating (Amps) | 9A |
| Frequency | 500MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 80W |
| Gain | 13dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | CDFM4 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 80 mA |
