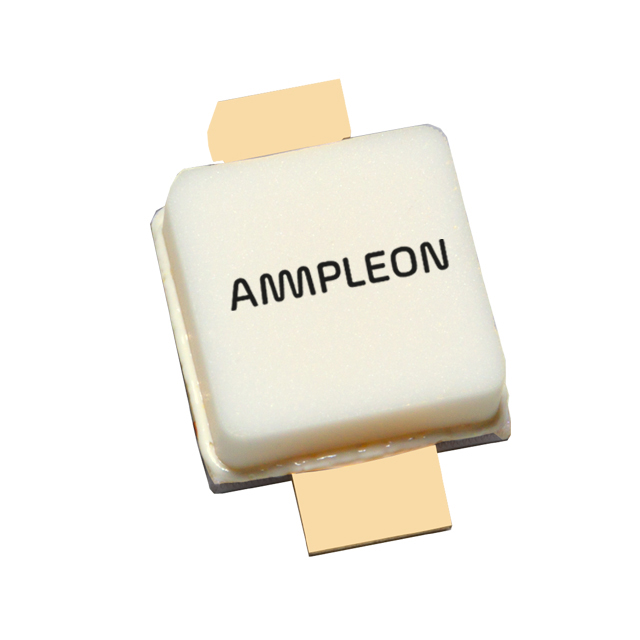

BLF25M612,112
RF MOSFET LDMOS 28V CDFM2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLF25M612-112 is a 28V LDMOS RF power transistor designed for high-efficiency applications. This component features a 12W output power capability at a 2.45GHz test frequency, delivering 19dB of gain. Operating with a 28V test voltage, it is suitable for demanding RF power amplification stages. The device is housed in a CDFM2 package, conforming to the SOT-975B footprint, and is provided in tray packaging. Its LDMOS technology ensures robust performance in applications such as industrial heating, medical equipment, and general-purpose RF power generation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-975B |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 2.45GHz |
| Power - Output | 12W |
| Gain | 19dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 10 mA |
