BLF246B,112
RF MOSFET 28V CDFM8Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

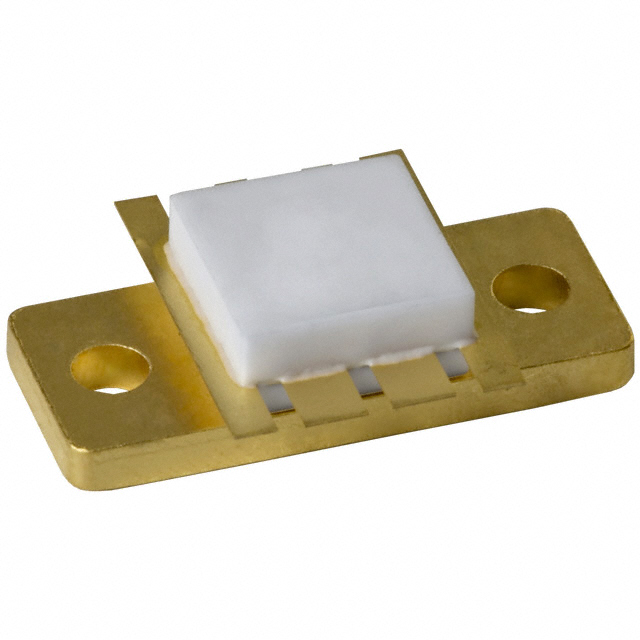

Ampleon USA Inc. BLF246B-112 is a 28V, 60W RF MOSFET designed for high-power applications. This dual N-channel device, presented in a CDFM8 (SOT-161A) package, operates at 175MHz with a typical gain of 19dB. The BLF246B-112 is characterized by a 50mA test current and an 8A current rating, suitable for demanding RF power amplifier designs. Its robust construction and performance characteristics make it a valuable component in the broadcast, industrial, and telecommunications sectors. The device is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-161A |
| Current Rating (Amps) | 8A |
| Mounting Type | Chassis Mount |
| Frequency | 175MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 60W |
| Gain | 19dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | CDFM8 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 50 mA |
