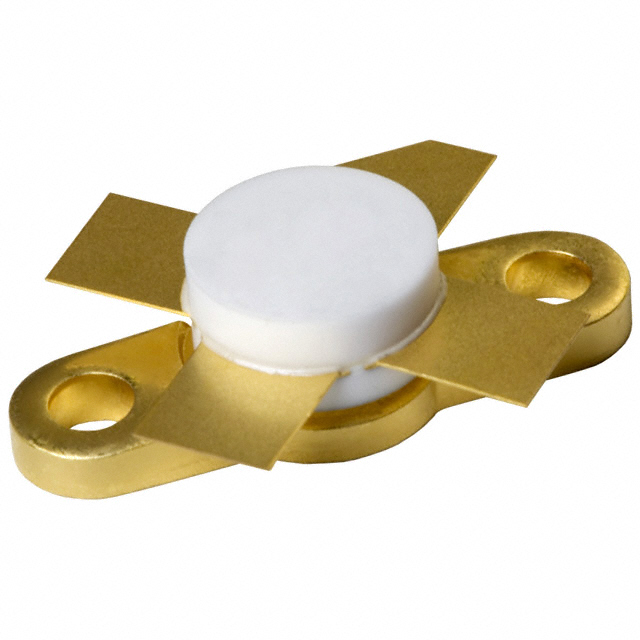

BLF242,112
RF MOSFET 28V CRFM4Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLF242-112 is a 28V N-channel RF MOSFET designed for high-frequency power applications. This component, part of the CRFM4 family, offers a 16dB gain at 175MHz with a 5W output power. It is specified with a test current of 10mA and a rated voltage of 65V, suitable for demanding RF power amplifier designs. The BLF242-112 is packaged in a SOT-123A (CRFM4) form factor, featuring a chassis mount for robust thermal management. Its technology is based on advanced MOSFET principles, making it a reliable choice for telecommunications infrastructure, broadcasting, and industrial RF heating systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-123A |
| Current Rating (Amps) | 1A |
| Mounting Type | Chassis Mount |
| Frequency | 175MHz |
| Configuration | N-Channel |
| Power - Output | 5W |
| Gain | 16dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | CRFM4 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 10 mA |
