BLC9G27LS-151AVZ
RF MOSFET LDMOS 28V DFM6Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

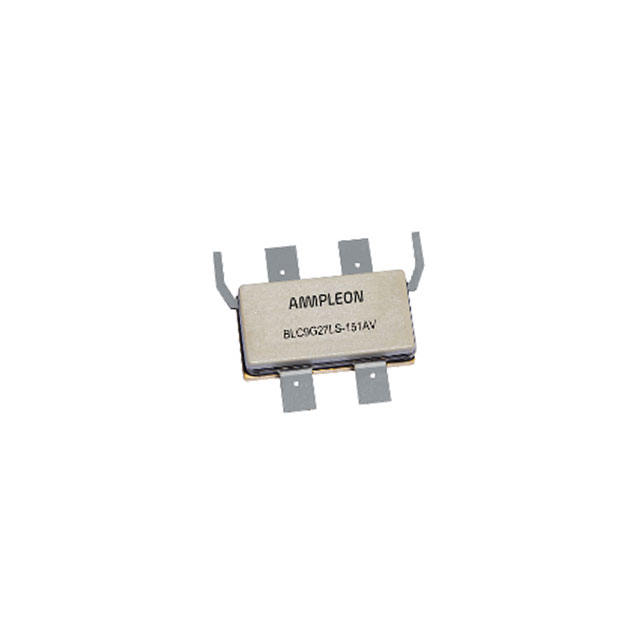

Ampleon USA Inc. BLC9G27LS-151AVZ is a high-performance RF power transistor utilizing LDMOS technology. This DFM6 packaged device operates within the 2.5GHz to 2.69GHz frequency range, delivering 155W of output power at a 28V test voltage. Key performance metrics include a gain of 15.6dB and a test current of 280mA. The dual, common source configuration is suitable for demanding applications in wireless infrastructure, including cellular base stations and point-to-point communication systems. This component is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-1258-3 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 2.5GHz ~ 2.69GHz |
| Configuration | Dual, Common Source |
| Power - Output | 155W |
| Gain | 15.6dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | DFM6 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 280 mA |
Request a Quote
