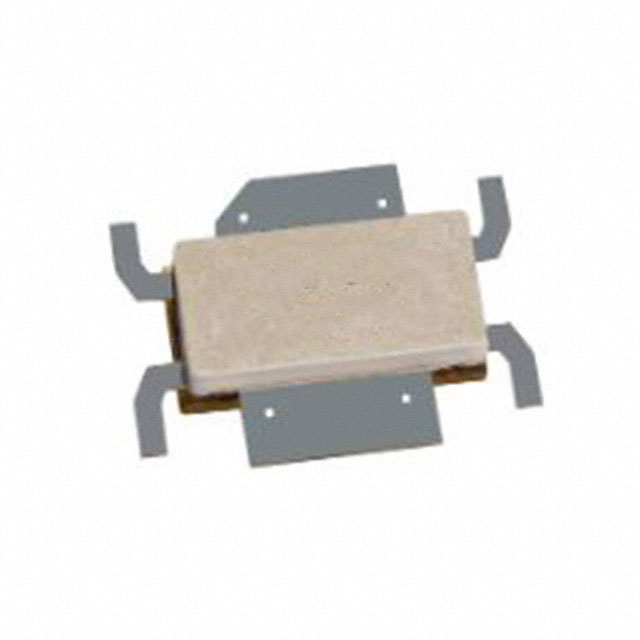

BLC9G22LS-120VTZ
RF MOSFET LDMOS 28V SOT1271-2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC9G22LS-120VTZ is an RF power LDMOS transistor designed for high-performance applications. This device operates within the 2.11 GHz to 2.18 GHz frequency range, delivering a nominal output power of 120W with a typical gain of 18.1 dB. It is constructed using advanced LDMOS technology, offering excellent thermal performance and linearity. The transistor is specified for a drain voltage of 28V under test conditions and is packaged in a SOT-1271-2 surface-mount package. This component is suitable for use in wireless infrastructure, base stations, and other demanding RF power amplification systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-1271-2 |
| Current Rating (Amps) | 2.8µA |
| Mounting Type | Surface Mount |
| Frequency | 2.11GHz ~ 2.18GHz |
| Power - Output | 120W |
| Gain | 18.1dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | SOT1271-2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 700 mA |
