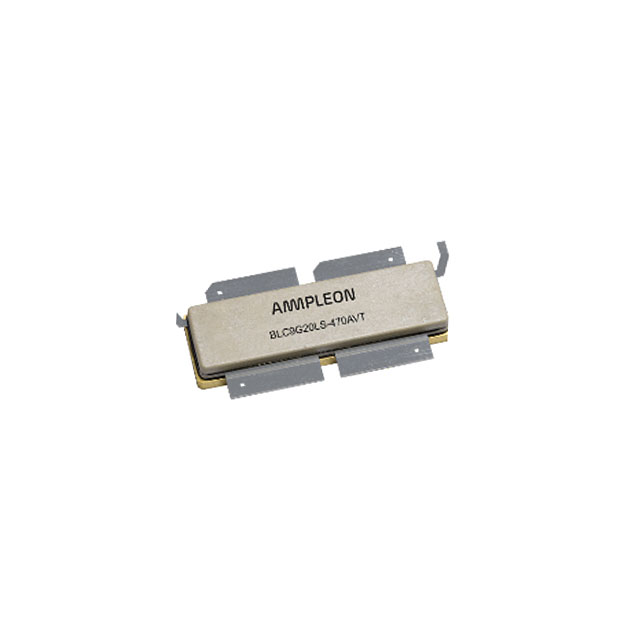

BLC9G20LS-470AVTZ
RF MOSFET LDMOS 28V DFM6Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC9G20LS-470AVTZ is a high-power LDMOS RF power transistor designed for demanding wireless infrastructure applications. This component operates in the 1.81 GHz to 1.88 GHz frequency band, delivering a nominal output power of 470W with a typical gain of 15.7 dB. Engineered for efficiency and robustness, it features a 28V test voltage and is rated for a 65V supply voltage. The device is presented in a DFM6 package, suitable for chassis mounting, facilitating effective thermal management. Its dual, common source configuration is optimized for linear amplification. This RF power transistor finds application in base stations and other high-frequency communication systems where reliable performance is paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-1258-3 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.81GHz ~ 1.88GHz |
| Configuration | Dual, Common Source |
| Power - Output | 470W |
| Gain | 15.7dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | DFM6 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 400 mA |
