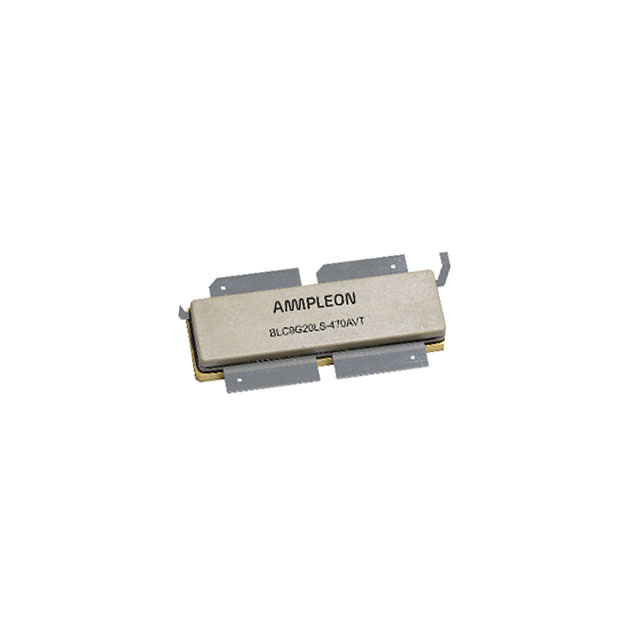

BLC9G20LS-470AVTY
RF MOSFET LDMOS 28V DFM6Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC9G20LS-470AVTY is a high-power RF MOSFET utilizing LDMOS technology, designed for demanding applications. This component operates within the 1.81GHz to 1.88GHz frequency range, delivering a robust 470W of output power with a typical gain of 15.7dB. The device is rated for 65V with a test voltage of 28V and a continuous drain current of 400mA. Packaged in a DFM6 (SOT-1258-3) for chassis mounting, it features a dual, common source configuration. This RF power transistor is suitable for base station infrastructure, broadcast transmitters, and other high-frequency power amplification systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1258-3 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.81GHz ~ 1.88GHz |
| Configuration | Dual, Common Source |
| Power - Output | 470W |
| Gain | 15.7dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | DFM6 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 400 mA |
