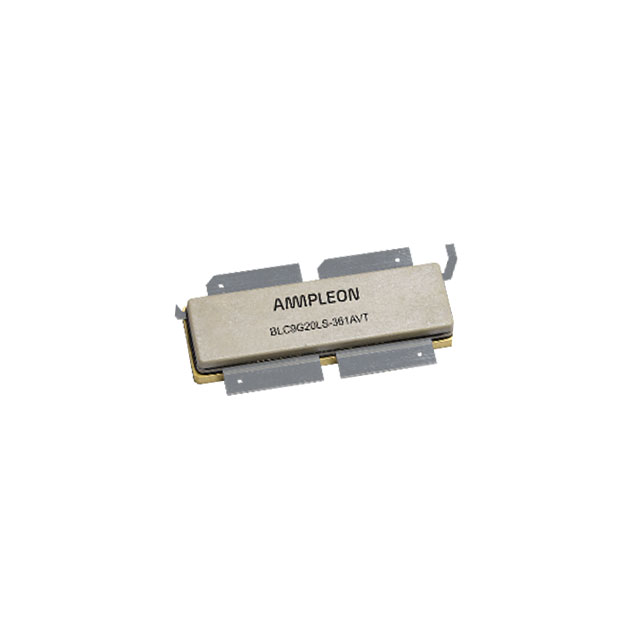

BLC9G20LS-361AVTZ
RF MOSFET LDMOS 28V DFM6Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC9G20LS-361AVTZ is a high-power RF LDMOS transistor designed for demanding applications. This DFM6 packaged device operates efficiently across the 1.81 GHz to 1.88 GHz frequency band, delivering a robust 360W of output power. It features a 28V test voltage and a 300mA test current, with a typical gain of 15.7dB. The dual, common source configuration and chassis mount design facilitate integration into power amplifier modules. This component is suitable for use in base station infrastructure and other high-frequency, high-power communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-1258-3 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.81GHz ~ 1.88GHz |
| Configuration | Dual, Common Source |
| Power - Output | 360W |
| Gain | 15.7dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | DFM6 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 300 mA |
