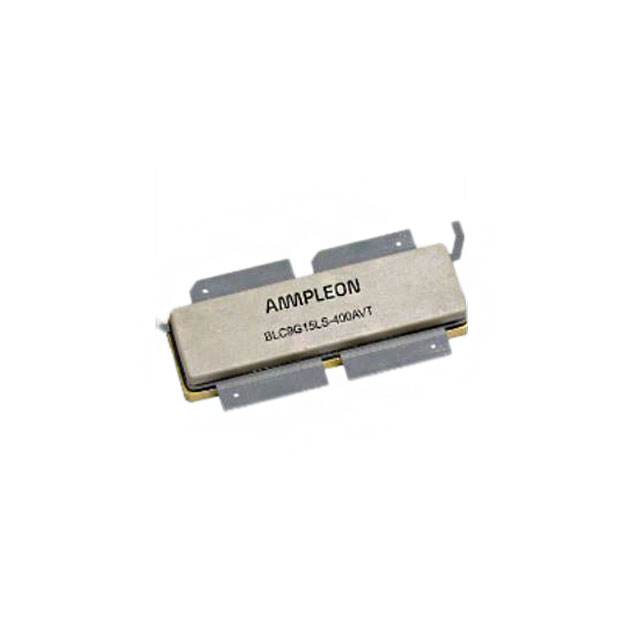

BLC9G15LS-400AVTY
RF MOSFET LDMOS 32V DFM6Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC9G15LS-400AVTY is a high-power RF LDMOS transistor designed for demanding applications. This DFM6 packaged device operates within the 1452 MHz to 1511 MHz frequency range, delivering a significant 540W of output power with a typical gain of 16.5dB. Tested at 32V with a current draw of 810 mA, it utilizes LDMOS technology for robust performance. The SOT-1258-3 package facilitates efficient thermal management suitable for chassis mounting. This component is frequently integrated into base station infrastructure and other high-power RF systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1258-3 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1452MHz ~ 1511MHz |
| Configuration | Dual, Common Source |
| Power - Output | 540W |
| Gain | 16.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | DFM6 |
| Voltage - Rated | 65 V |
| Voltage - Test | 32 V |
| Current - Test | 810 mA |
