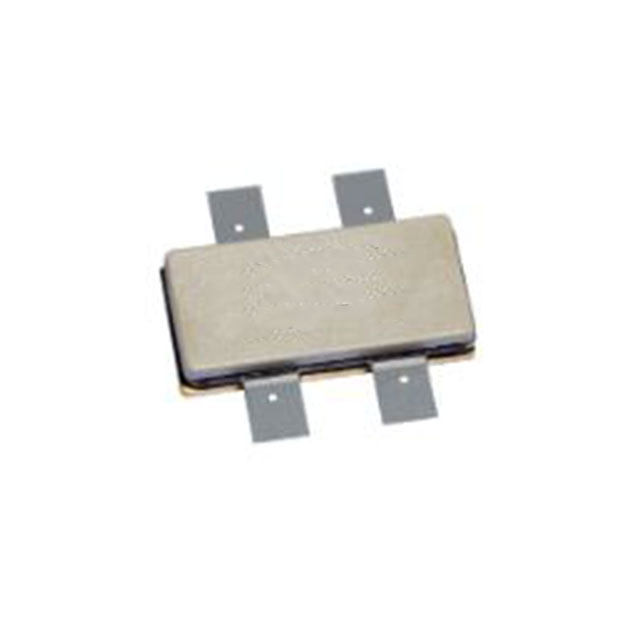

BLC9G10XS-120AZ
RF MOSFET LDMOS 28V SOT1273-1Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC9G10XS-120AZ is a high-power RF MOSFET designed for demanding applications. This LDMOS device operates within the 920MHz to 960MHz frequency range, delivering a significant 120W of output power with a typical gain of 21dB. It is constructed with a 28V test voltage and a 65V rated voltage, featuring a 120mA test current. The SOT1273-1 package ensures efficient thermal management for surface mount configurations. This component is commonly utilized in base station infrastructure and industrial applications requiring robust RF power amplification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-1273-1 |
| Current Rating (Amps) | 1.4µA |
| Mounting Type | Surface Mount |
| Frequency | 920MHz ~ 960MHz |
| Configuration | Dual |
| Power - Output | 120W |
| Gain | 21dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | SOT1273-1 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 120 mA |
