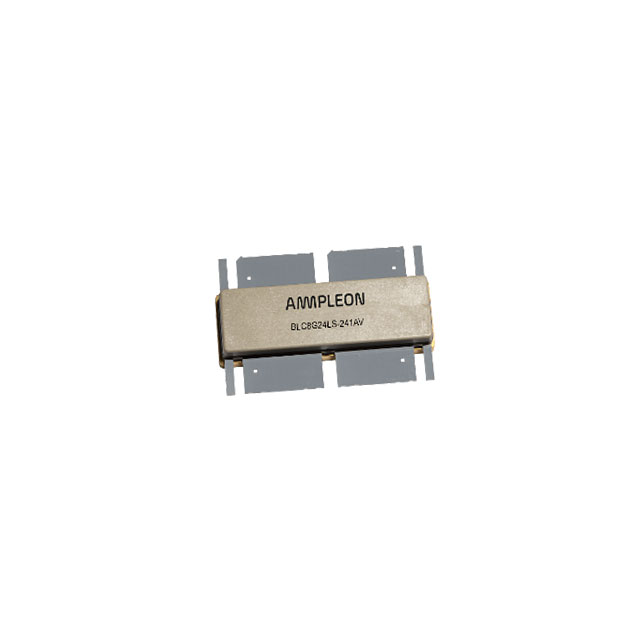

BLC8G24LS-241AVZ
RF MOSFET LDMOS 28V DFM8Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC8G24LS-241AVZ is a high-performance RF LDMOS transistor designed for demanding applications. This DFM8 packaged device operates across a frequency range of 2.3GHz to 2.4GHz, delivering 56W of output power with a typical gain of 14.5dB. Engineered for efficiency at a 28V test voltage, it features a 500mA test current and a robust 65V voltage rating. The dual, common source configuration and chassis mount capability make it suitable for integration into advanced wireless communication systems, including cellular infrastructure and point-to-point radio links. This component is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-1252-1 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 2.3GHz ~ 2.4GHz |
| Configuration | Dual, Common Source |
| Power - Output | 56W |
| Gain | 14.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | DFM8 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 500 mA |
Request a Quote
