BLC8G24LS-241AVY
RF MOSFET LDMOS 28V DFM8Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

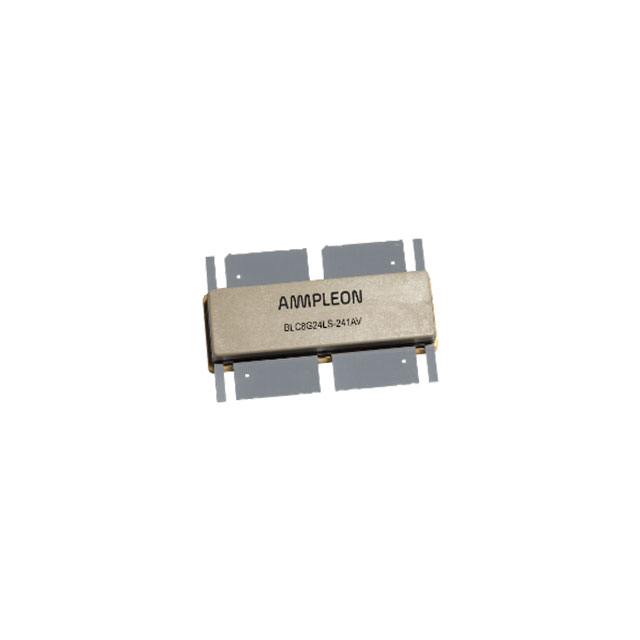

Ampleon USA Inc. BLC8G24LS-241AVY is an RF LDMOS power transistor designed for high-frequency applications. Operating within the 2.3 GHz to 2.4 GHz frequency range, this device delivers 56W of output power with a typical gain of 14.5dB. It is specified for a 28V test voltage and a 500mA test current, and features a 65V breakdown voltage. The BLC8G24LS-241AVY utilizes LDMOS technology for robust performance. Its DFM8 package, equivalent to SOT-1252-1, is suitable for chassis mounting and is supplied on tape and reel. This component is commonly found in base station infrastructure and other wireless communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1252-1 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 2.3GHz ~ 2.4GHz |
| Configuration | Dual, Common Source |
| Power - Output | 56W |
| Gain | 14.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | DFM8 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 500 mA |
