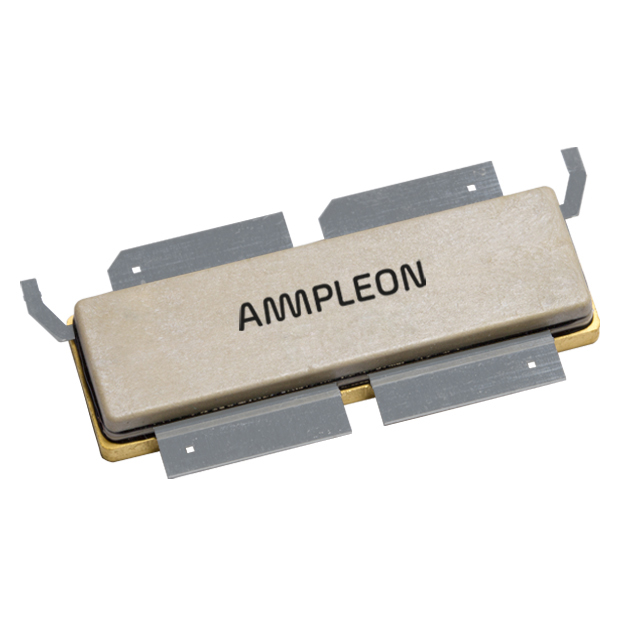

BLC8G22LS-450AVZ
RF MOSFET LDMOS 28V DFM6Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC8G22LS-450AVZ is an RF LDMOS power transistor designed for high-power applications. This component operates within the 2.11GHz to 2.17GHz frequency range, delivering a nominal output power of 85W with a gain of 14dB. The transistor is specified for a test voltage of 28V and a rated voltage of 65V, maintaining a test current of 1A. It features a DFM6 package, suitable for chassis mounting, and is supplied in trays. The BLC8G22LS-450AVZ is engineered for demanding RF power amplifier designs across various wireless communication infrastructure and high-power broadcast applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-1258-3 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 2.11GHz ~ 2.17GHz |
| Configuration | Dual, Common Source |
| Power - Output | 85W |
| Gain | 14dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | DFM6 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 1 A |
