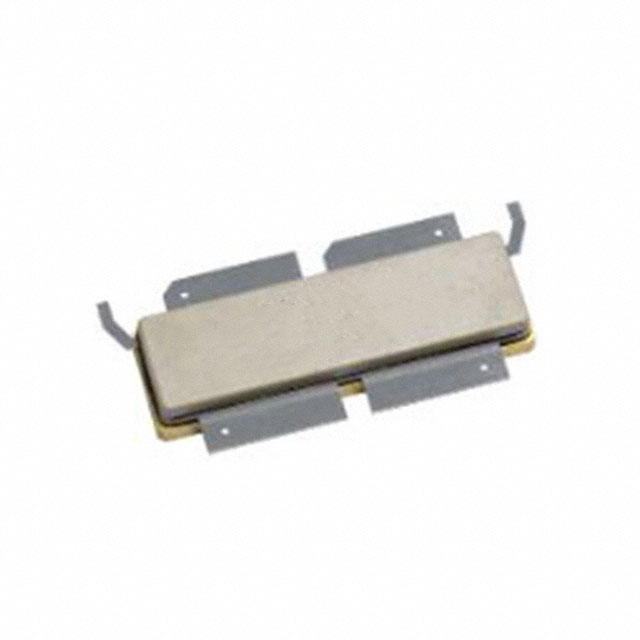

BLC10G27LS-320AVTZ
RF MOSFET LDMOS 28V SOT1258-1Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC10G27LS-320AVTZ is an LDMOS RF power transistor designed for high-frequency applications. Operating within the 2.5 GHz to 2.7 GHz range, this device delivers 320W of output power with a typical gain of 16dB. It is rated for a drain-source voltage of 65V, with testing conducted at 28V. The transistor exhibits a drain current of 400mA under test conditions and is housed in a SOT1258-1 package, suitable for chassis mounting. This component is utilized in demanding applications within the wireless infrastructure and industrial heating sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT1258-1 |
| Current Rating (Amps) | 2.8µA |
| Mounting Type | Chassis Mount |
| Frequency | 2.5GHz ~ 2.7GHz |
| Power - Output | 320W |
| Gain | 16dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | SOT1258-1 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 400 mA |
