BLC10G22XS-400AVTZ
RF MOSFET LDMOS 28V SOT1258-4Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

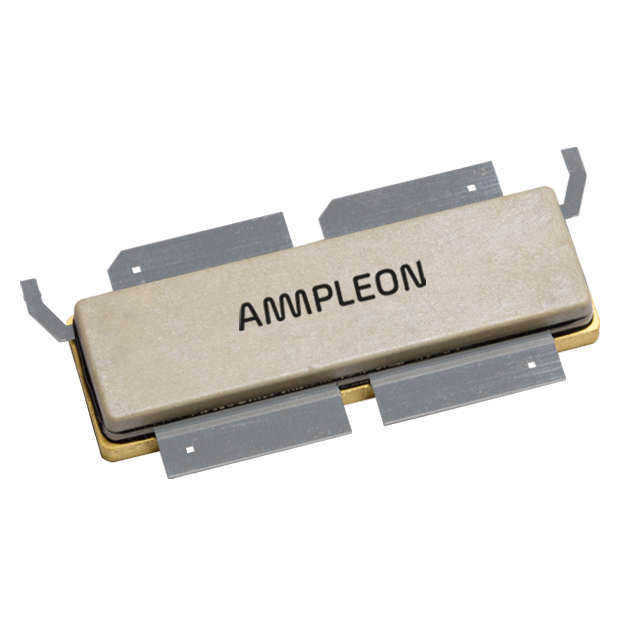

Ampleon USA Inc. BLC10G22XS-400AVTZ is a high-power RF LDMOS transistor designed for demanding applications. This surface-mount device, housed in a SOT1258-4 package, operates within the 2.11GHz to 2.2GHz frequency range. It delivers a significant 400W of output power with a typical gain of 17dB. The transistor is rated for 65V and tested at 28V, with a test current of 800mA. Its LDMOS technology ensures robust performance in challenging RF environments. This component is commonly utilized in base station infrastructure and other high-frequency power amplification systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-1258-4 |
| Current Rating (Amps) | 2.8µA |
| Mounting Type | Surface Mount |
| Frequency | 2.11GHz ~ 2.2GHz |
| Power - Output | 400W |
| Gain | 17dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | SOT1258-4 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 800 mA |
