BLC10G18XS-301AVTZ
RF MOSFET LDMOS 30V DFM6Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLC10G18XS-301AVTZ is a high-performance RF LDMOS transistor designed for demanding wireless infrastructure applications. This DFM6 packaged device operates within the 1.805GHz to 1.88GHz frequency range, delivering a robust 300W of output power. Featuring a 15.6dB gain at a 30V test voltage and 300mA test current, it exhibits excellent linearity characteristics. The LDMOS technology ensures high efficiency and ruggedness, making it suitable for base station power amplifiers and other high-power RF systems. This component is engineered for reliable operation in telecommunications and broadcast industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-1275-1 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.805GHz ~ 1.88GHz |
| Configuration | Dual |
| Power - Output | 300W |
| Gain | 15.6dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | DFM6 |
| Voltage - Rated | 65 V |
| Voltage - Test | 30 V |
| Current - Test | 300 mA |
Request a Quote
Clients Also Buy
ART35FEU
RF MOSFET LDMOS 65V SOT467C
BLF1822-10,112
RF MOSFET LDMOS 26V SOT467C

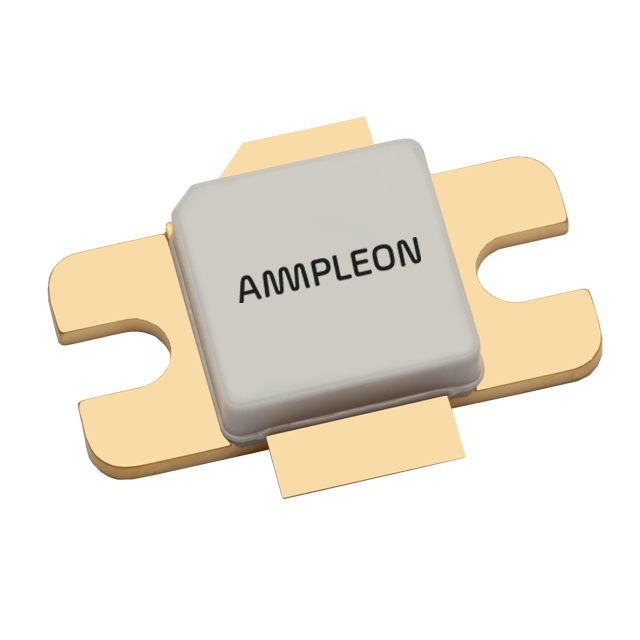

BLF6G22-45,135
