BLA8G1011L-300GU
RF MOSFET LDMOS 32V CDFM2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

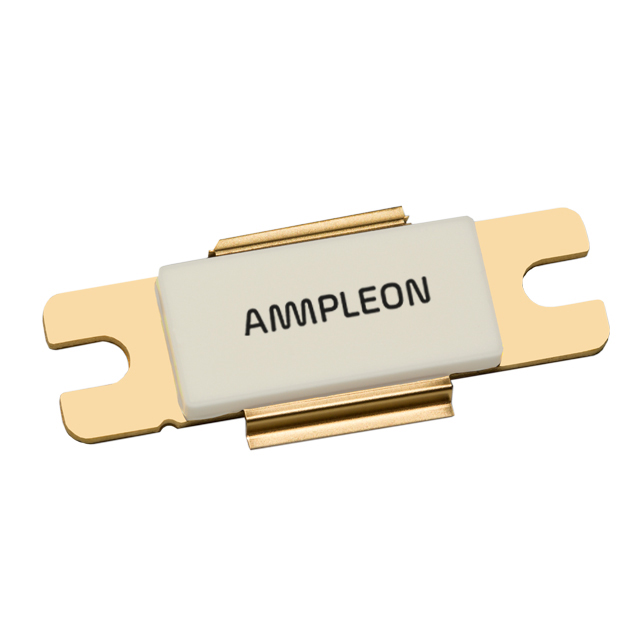

Ampleon USA Inc. BLA8G1011L-300GU is a high-power LDMOS RF MOSFET designed for demanding applications. This device operates at a test voltage of 32V and features a 65V breakdown voltage, delivering 300W of output power at 1.06GHz. With a typical gain of 16.5dB and a test current of 150mA, it is engineered for efficiency and performance in robust RF power amplifier designs. The CDFM2 package, also known as SOT-502A, is suitable for chassis mounting, facilitating effective thermal management. This component is commonly utilized in base station infrastructure and industrial heating applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-502A |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.06GHz |
| Power - Output | 300W |
| Gain | 16.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 32 V |
| Current - Test | 150 mA |
