BLA6G1011L-200RG,1
RF FET LDMOS 65V 20DB SOT502DManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

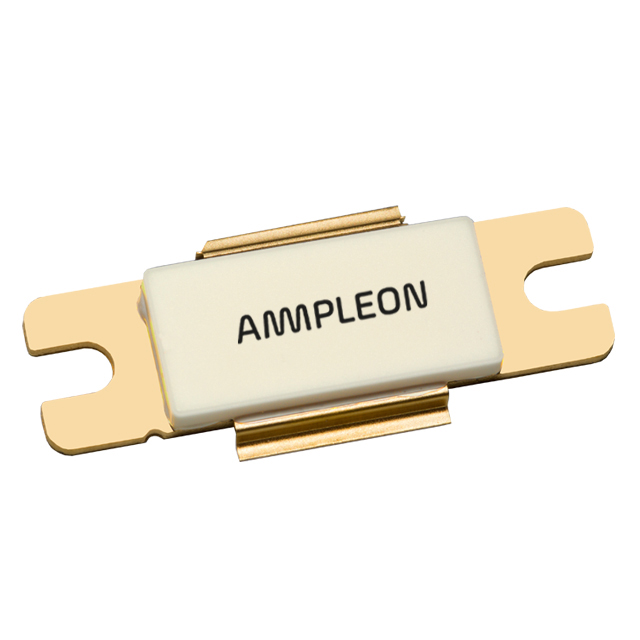

Ampleon BLA6G1011L-200RG-1 is a 65V LDMOS RF power transistor designed for high-power applications. This device operates within the 1.03GHz to 1.09GHz frequency range, delivering a nominal 20dB gain. With a 200W output power capability, it is suitable for demanding RF power amplification tasks. The transistor utilizes LDMOS technology, known for its efficiency and performance in high-frequency power applications. Packaged in a SOT-502D (LDMOST) for robust thermal management and chassis mounting, this component is commonly found in base station infrastructure and industrial RF power generation. The BLA6G1011L-200RG-1 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-502D |
| Current Rating (Amps) | 49A |
| Mounting Type | Chassis Mount |
| Frequency | 1.03GHz ~ 1.09GHz |
| Power - Output | 200W |
| Gain | 20dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | LDMOST |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 100 mA |
