ART1K6PHY
ART1K6PH/OMP 1230-4F-1/REELManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

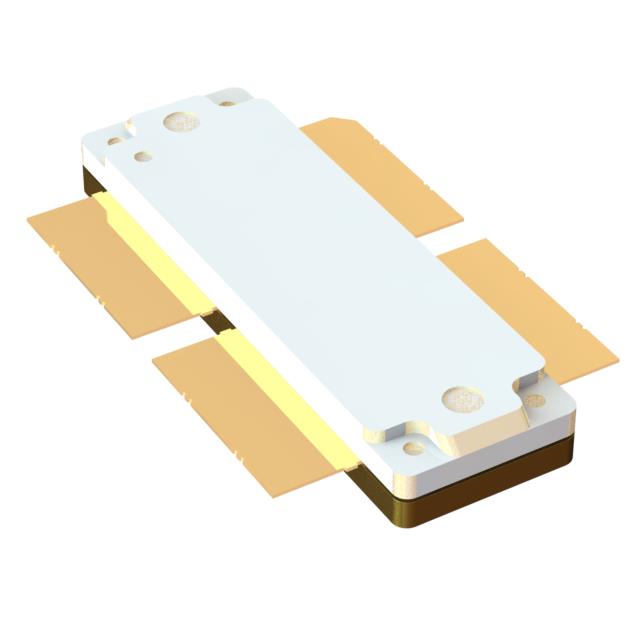

Ampleon USA Inc. ART1K6PHY is an LDMOS RF power transistor designed for high-power applications. This dual N-channel MOSFET, configured in a common source arrangement, operates across a frequency range of 1MHz to 450MHz. It delivers a significant 1600W of output power with a gain of 27.4dB, tested at 55V and 50mA. The component features a high breakdown voltage of 177V. Supplied in an OMP-1230-4F-1 package on tape and reel, the ART1K6PHY is suitable for robust performance in demanding RF power amplifier designs across various industrial and telecommunications sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | OMP-1230-4F-1 |
| Current Rating (Amps) | 960nA |
| Mounting Type | Surface Mount |
| Frequency | 1MHz ~ 450MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 1600W |
| Gain | 27.4dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | OMP-1230-4F-1 |
| Grade | - |
| Voltage - Rated | 177 V |
| Voltage - Test | 55 V |
| Current - Test | 50 mA |
| Qualification | - |
