ART1K6PHGY
ART1K6PHG/OMP 1230-4F-1/REELManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

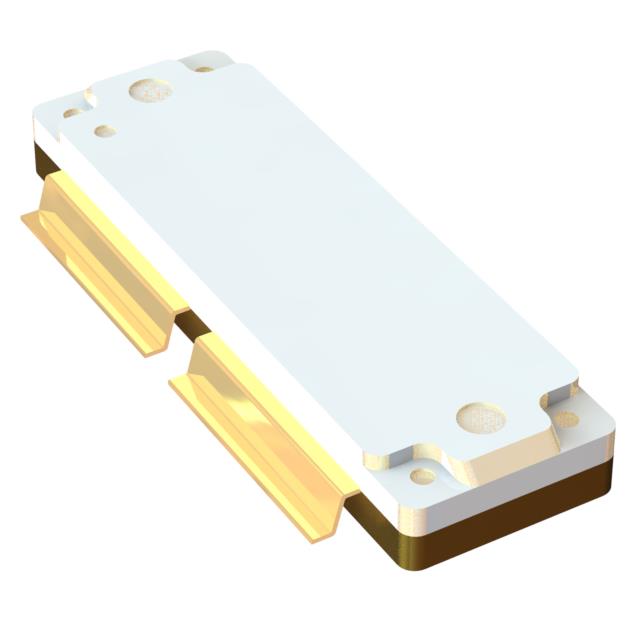

Ampleon USA Inc. ART1K6PHGY is an LDMOS RF power transistor designed for high-performance applications. This dual N-channel, common source device operates across a frequency range of 1MHz to 450MHz, delivering a nominal output power of 1600W with a gain of 27.3dB at a test voltage of 55V. The component is housed in an OMP-1230-4G-1 package, suitable for surface mounting and supplied on tape and reel. Key specifications include a rated voltage of 177V and a test current of 600mA. This robust transistor is utilized in demanding sectors such as industrial, medical, and defense communications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | OMP-1230-4G-1 |
| Current Rating (Amps) | 2.8µA |
| Mounting Type | Surface Mount |
| Frequency | 1MHz ~ 450MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 1600W |
| Gain | 27.3dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | OMP-1230-4G-1 |
| Grade | - |
| Voltage - Rated | 177 V |
| Voltage - Test | 55 V |
| Current - Test | 600 mA |
| Qualification | - |
