C100Y103J
THERMISTOR NTC 10KOHM 3690K BEADManufacturer: Amphenol Thermometrics
Categories: NTC Thermistors
Quality Control: Learn More

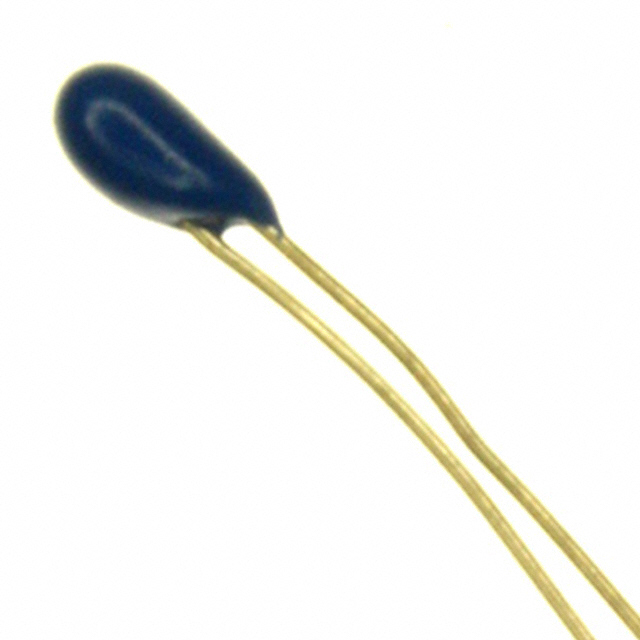

Amphenol Thermometrics Series C100 NTC Thermistor, part number C100Y103J. This bead-style thermistor offers a nominal resistance of 10k Ohms at 25°C with a ±5% tolerance. It features a B constant (B25/85) of 3690K. The component operates within a temperature range of -80°C to 150°C and has a maximum power dissipation of 75 mW. Lead wires are 1.50 inches (38.00mm) in length, and the mounting type is free hanging. This device is commonly utilized in applications such as temperature sensing, control systems, and thermal management across various industrial and automotive sectors. Supplied in bulk packaging.
Additional Information
Series: C100RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 17 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead |
| Mounting Type | Free Hanging |
| Operating Temperature | -80°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3690K |
| B25/100 | - |
| B Value Tolerance | - |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±5% |
| B25/75 | - |
| Length - Lead Wire | 1.50"" (38.00mm) |
| Power - Max | 75 mW |
