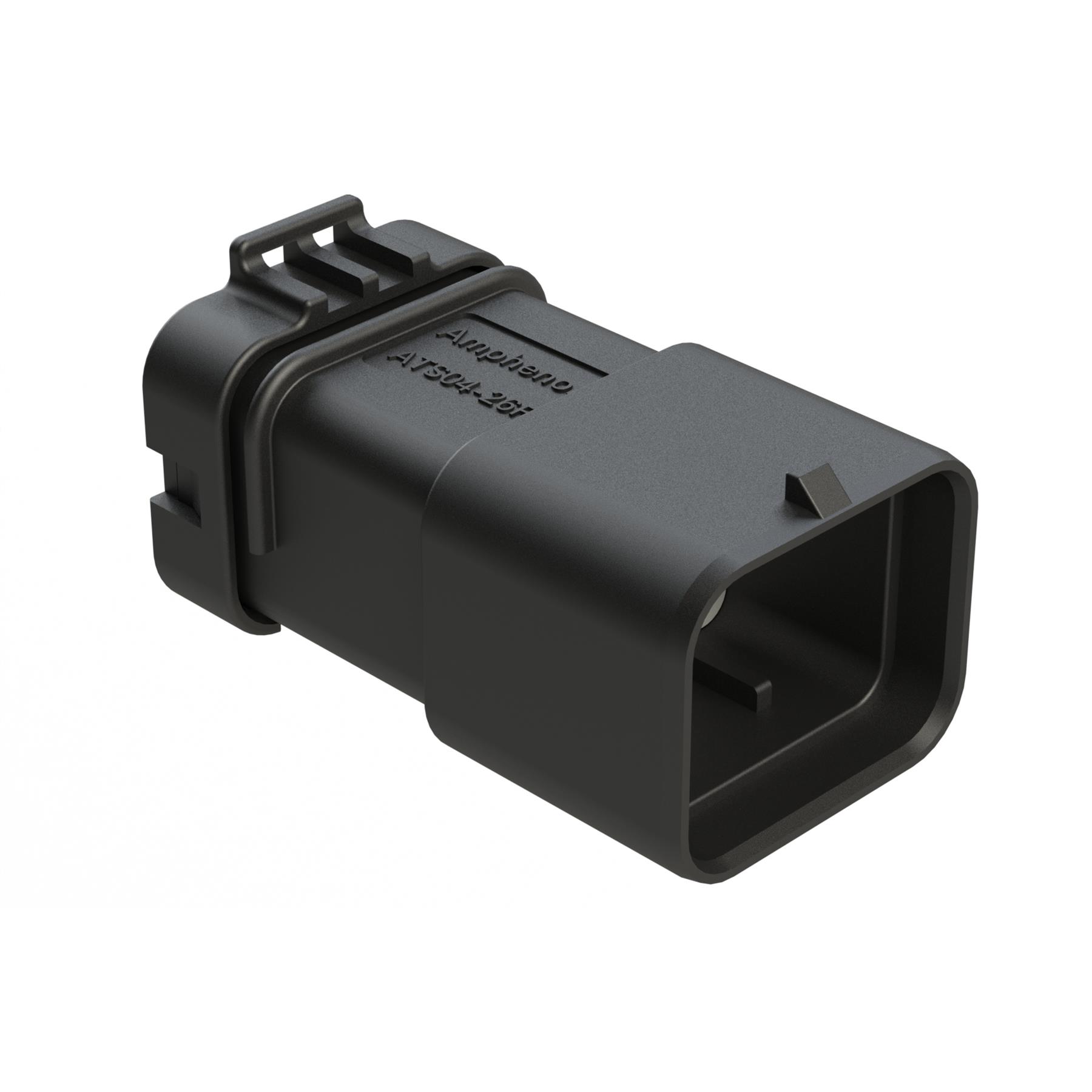

ATS04-26PB
26 POSITION IN-LINE RECEPTACLE,Manufacturer: Amphenol Sine Systems Corp
Categories: Rectangular Connector Housings
Quality Control: Learn More
26 Rectangular Connectors - Housings Receptacle Black 0.118"" (3.00mm)
Additional Information
Series: ATS SeriesRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Sealed |
| Packaging | Box |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Pitch | 0.118"" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Row Spacing | 0.157"" (4.00mm) |
| Insulation Material | Thermoplastic |
| Number of Rows | 4 |
Request a Quote
Clients Also Buy
ATS13-26PA-BM01
26 POSITION PCB RECEPTACLE WITH

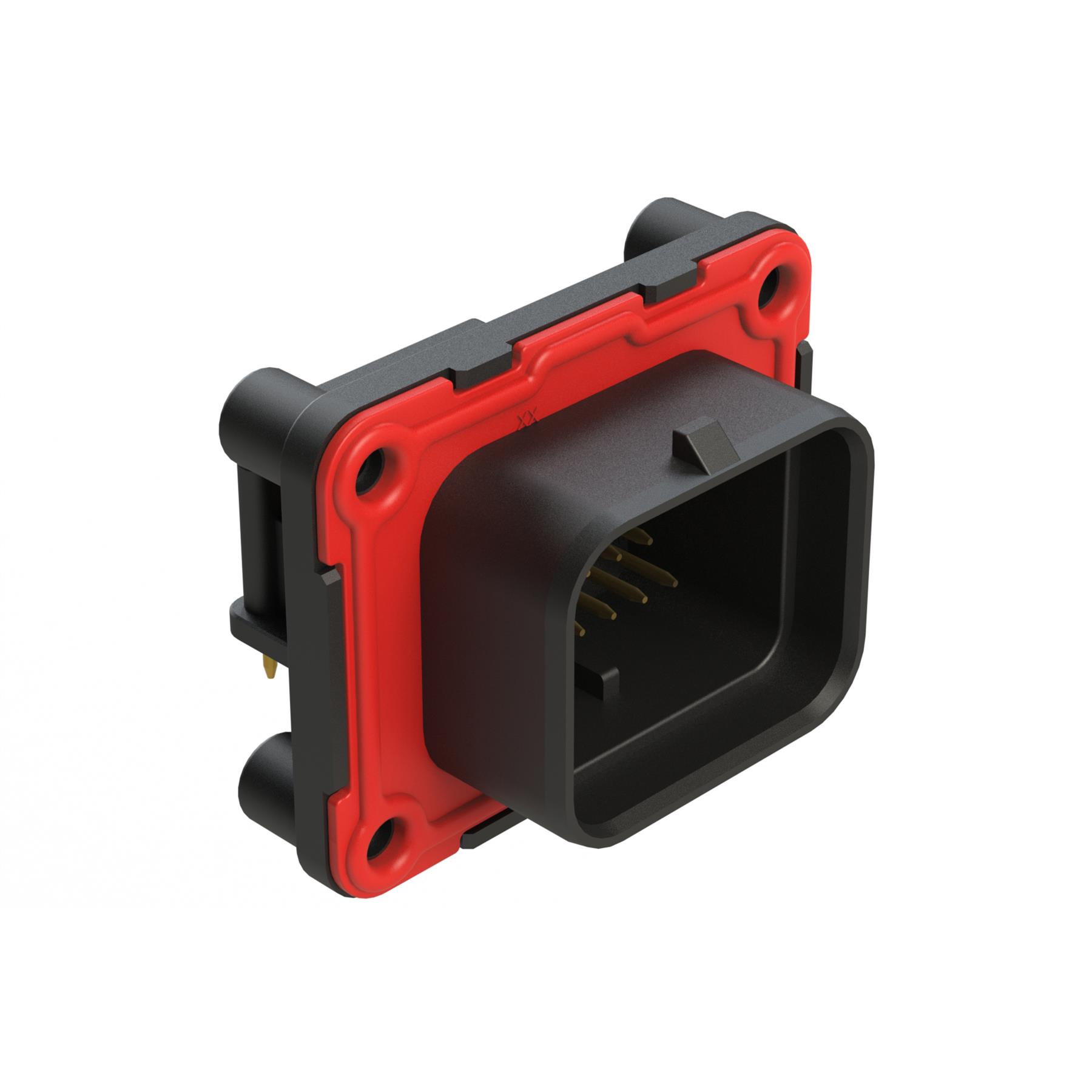

ATS13-26PA-BM21
