2CMA178696R1000
3P+N+E SOCKET OUTLET FOR FLUSH MManufacturer: Amphenol Sine Systems Corp
Categories: Plugs and Receptacles
Quality Control: Learn More

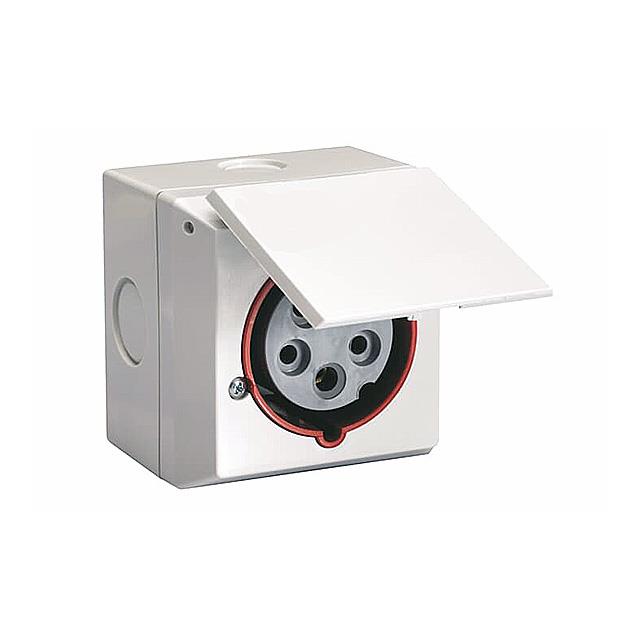

Power Connector Receptacle, Female Sockets Pin and Sleeve (4P5W) Wall Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cover |
| Packaging | Box |
| Connector Type | Receptacle, Female Sockets |
| Voltage Rating | 200/415V |
| Current Rating (Amps) | 16A |
| Mounting Type | Wall Mount |
| Number of Positions | 5 |
| Termination | Screw |
| Approval Agency | IEC |
| Ingress Protection | IP44 |
| Panel Thickness | - |
| Panel Cutout Dimensions | - |
| Connector Style | Pin and Sleeve (4P5W) |
| Material Flammability Rating | - |
Request a Quote
