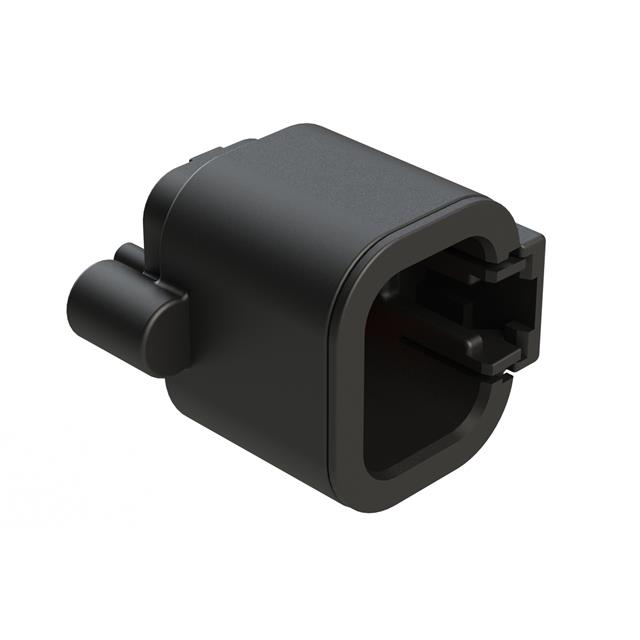

ATP04-4P-BM13
4 POSITION, STRAIGHT PCB RECEPTAManufacturer: Amphenol Sine Systems Corp
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 4 position 0.264"" (6.71mm)
Additional Information
Series: BoardLock™ ATPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Sealed |
| Packaging | Box |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | 25A |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.264"" (6.71mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | 0.146"" (3.70mm) |
| Insulation Height | 1.126"" (28.60mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.400"" (10.16mm) |
| Contact Length - Mating | - |
