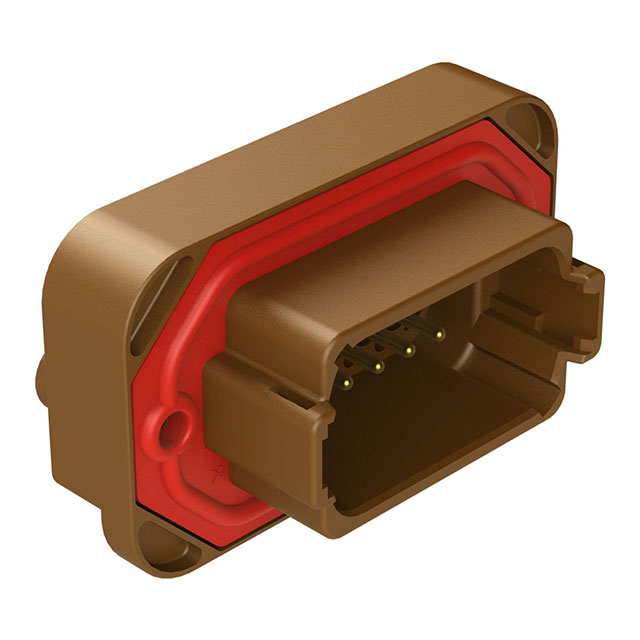

AT15-12PD-BM01
CONN HEADER VERT 12POSManufacturer: Amphenol Sine Systems Corp
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 12 position
Additional Information
Series: BoardLock™ ATRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Mating Flange, Mounting Flange |
| Packaging | Tray |
| Connector Type | Receptacle |
| Voltage Rating | 250V |
| Current Rating (Amps) | 13A |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | IP67 |
| Material Flammability Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Brown |
| Pitch - Mating | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Shape | Circular |
| Contact Length - Post | 0.122"" (3.10mm) |
| Insulation Height | 1.185"" (30.10mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.358"" (9.10mm) |
| Contact Length - Mating | - |
