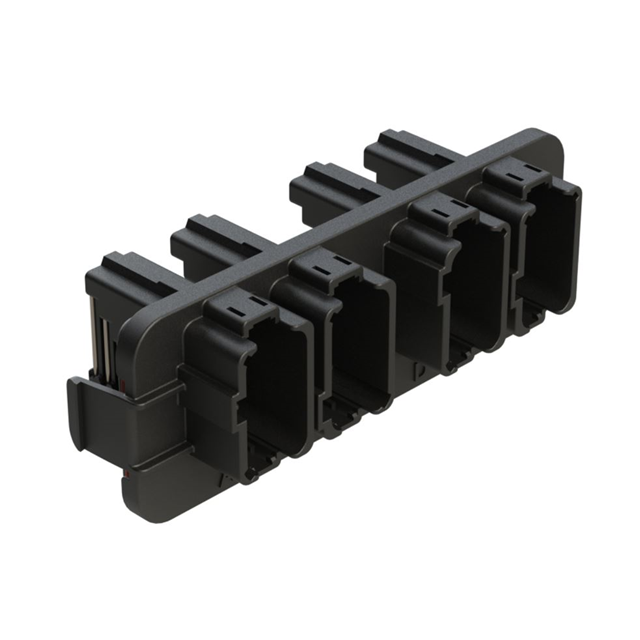

AT13-48PABCD-BM03
AIPX AT HEADER THERMOPLASTIC 4X1Manufacturer: Amphenol Sine Systems Corp
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Panel Mount, Through Hole, Right Angle 48 (12 x 4) position
Additional Information
Series: Armor IPX™RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange, Sealed |
| Packaging | Box |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 13A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 48 (12 x 4) |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | 0.180"" (4.57mm) |
| Insulation Height | - |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
