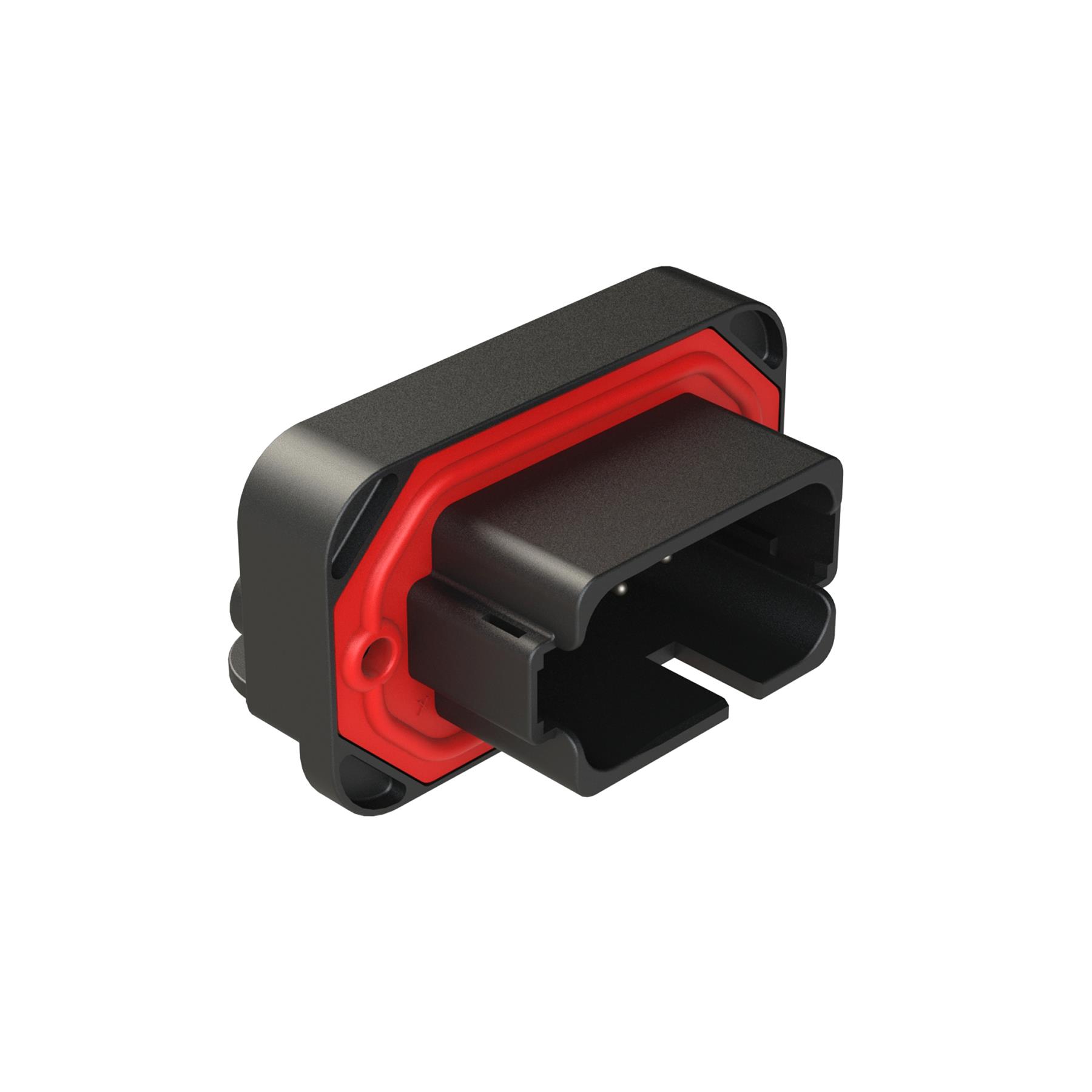

AT13-1612PB-BM03
13 POSITION PCB RECEPTACLE WITHManufacturer: Amphenol Sine Systems Corp
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Panel Mount, Through Hole, Right Angle 13 position 0.185"" (4.70mm)
Additional Information
Series: BoardLock™ ATRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Box |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | 25A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 13 |
| Number of Rows | 3 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.185"" (4.70mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | 0.122"" (3.10mm) |
| Insulation Height | 1.390"" (35.30mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.191"" (4.85mm) |
| Contact Length - Mating | - |
