RTS716N4P03
CONN RCPT HSNG MALE 4POS PNL MNTManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Housings
Quality Control: Learn More

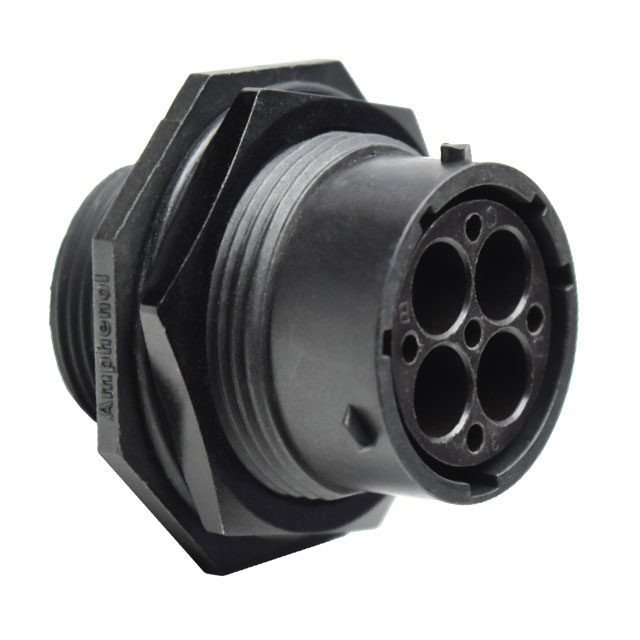

4 Position Circular Connector Receptacle Housing Panel Mount
Additional Information
Series: ecomate® Aquarius™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle Housing |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Number of Positions | 4 |
| Type | For Male Pins |
| Orientation | N (Normal) |
| Shell Size - Insert | 16-4 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Contact Size | 8 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shell Size, MIL | - |
| Housing Color | Black |
| Shell Material | Thermoplastic |
| Shell Finish | - |
