RTS6BS18N23S03
CONN PLUG HSG FMALE 23POS INLINEManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Housings
Quality Control: Learn More

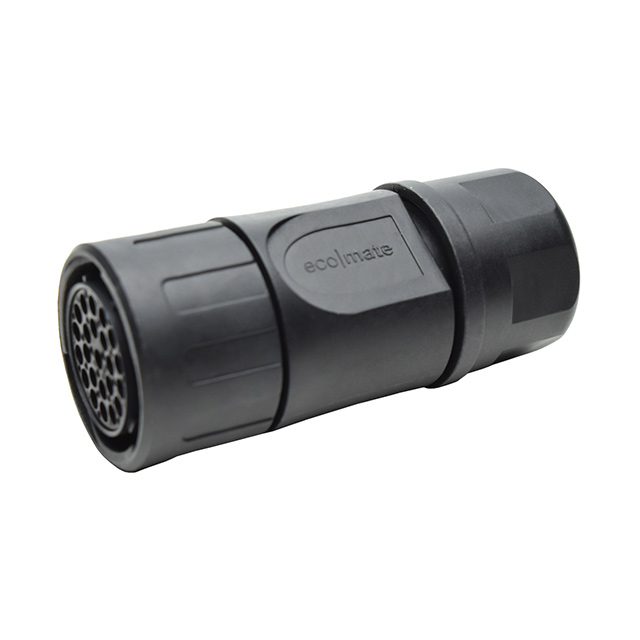

23 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
Additional Information
Series: ecomate® Aquarius™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Connector Type | Plug Housing |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 23 |
| Type | For Female Sockets |
| Orientation | N (Normal) |
| Shell Size - Insert | 18-23 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Contact Size | 16 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Housing Color | Black |
| Shell Material | Thermoplastic |
| Shell Finish | - |
