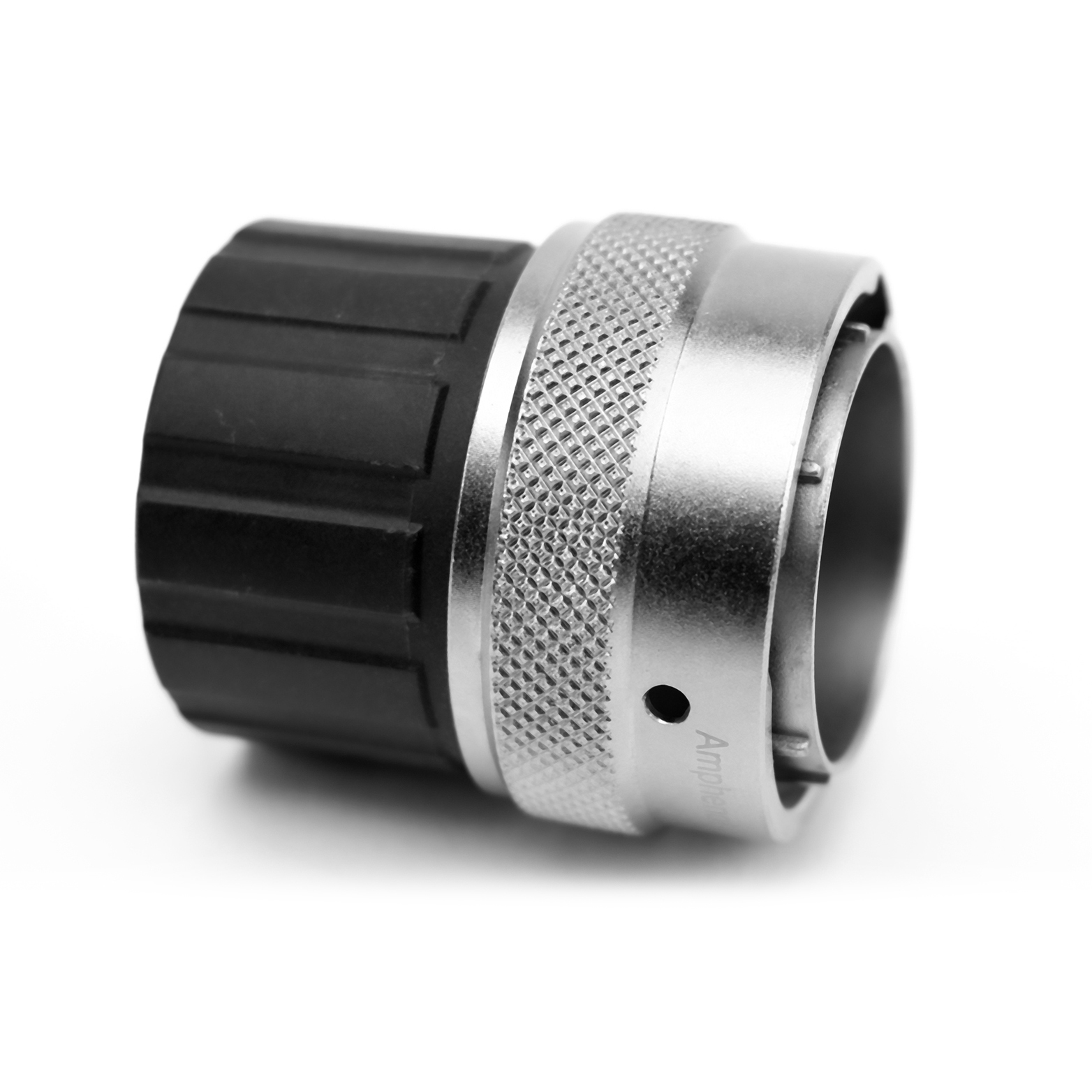

RT061823SNHEC03
PLUG, 23 POSITION, FEMALE, SHELLManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Housings
Quality Control: Learn More
23 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Additional Information
Series: ecomate® RMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Coupling Nut |
| Packaging | Bag |
| Connector Type | Plug Housing |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 23 |
| Type | For Female Sockets |
| Orientation | N (Normal) |
| Shell Size - Insert | 18-23 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Contact Size | 16 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Housing Color | Silver |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Primary Material | Metal |
