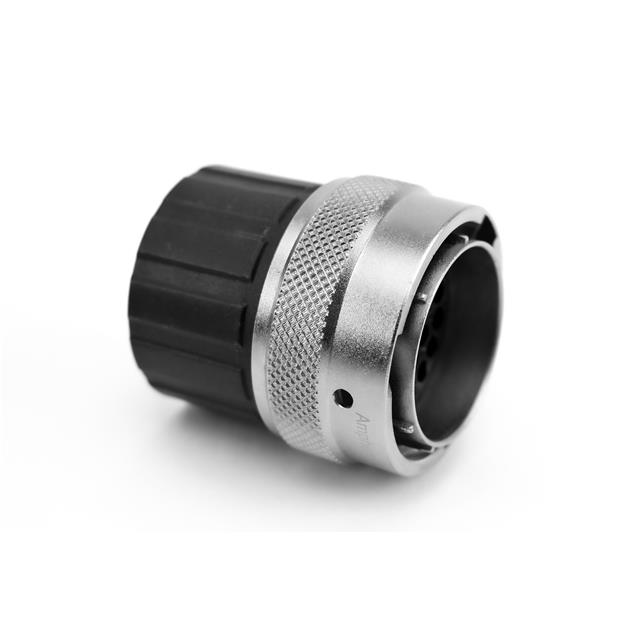

RT06124PNHEC03R
PLUG, 4 POSITION, MALE, SHELL SIManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Housings
Quality Control: Learn More
4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
Additional Information
Series: ecomate® RMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Coupling Nut |
| Packaging | Bag |
| Connector Type | Plug Housing |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 4 |
| Type | For Male Pins |
| Orientation | N (Normal) |
| Shell Size - Insert | 12-4 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Contact Size | 16 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Housing Color | Silver |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
Request a Quote
