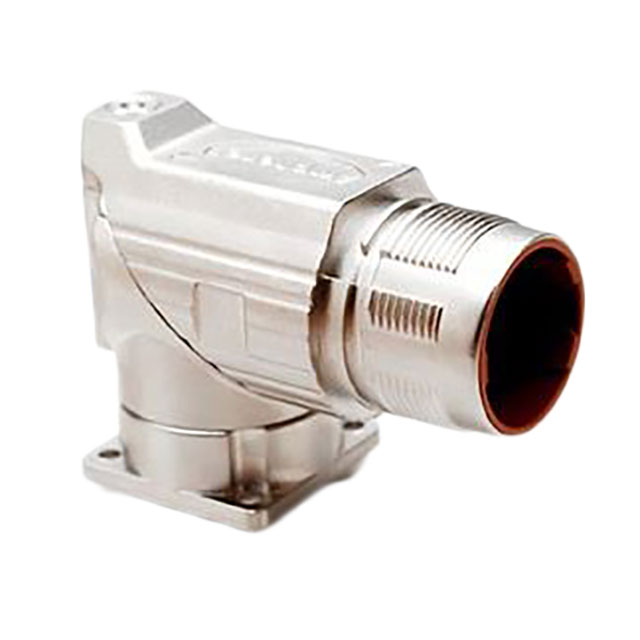

MB7RJN0801
CONN RCPT HSG MALE 8P PNL MT RAManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Housings
Quality Control: Learn More
8 (4 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
Additional Information
Series: MotionGrade™ M23 Power Standard Series, ThreadedRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Rotatable |
| Packaging | Bulk |
| Connector Type | Receptacle Housing |
| Mounting Type | Panel Mount, Right Angle |
| Shielding | Shielded |
| Number of Positions | 8 (4 + 3 Power + PE) |
| Type | For Male Pins |
| Orientation | Keyed |
| Shell Size - Insert | M23-8 |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Contact Size | 1.0mm (4), 2.0mm Power (4) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Housing Color | Silver |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
Request a Quote
Clients Also Buy
MB1CKN0900
CONN PLG HSG FMALE 9POS INLINE

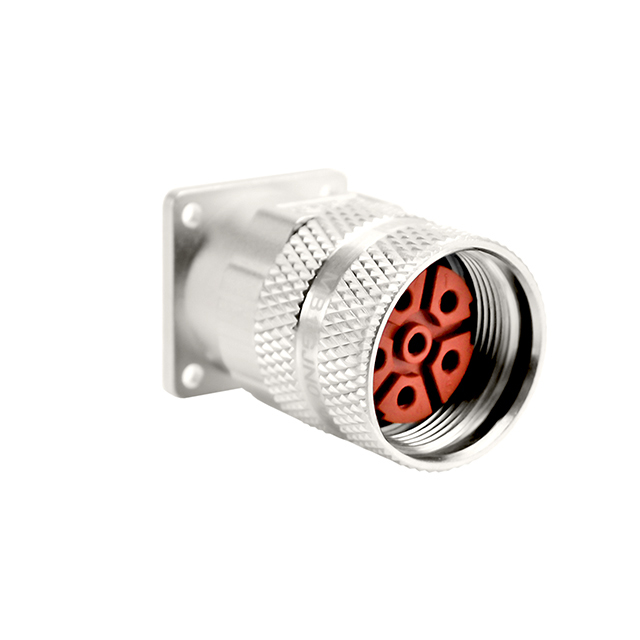

MB1GJN0600
CONN PLUG HSG FMALE 6POS PNL MT

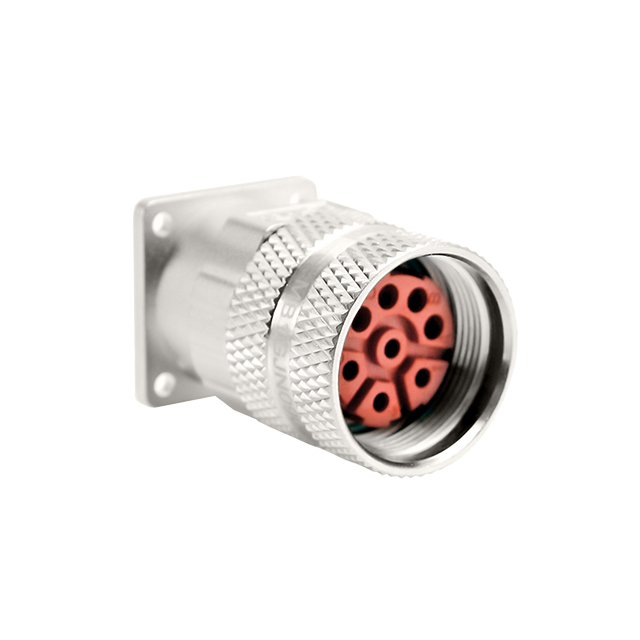

MB1GJN0800
