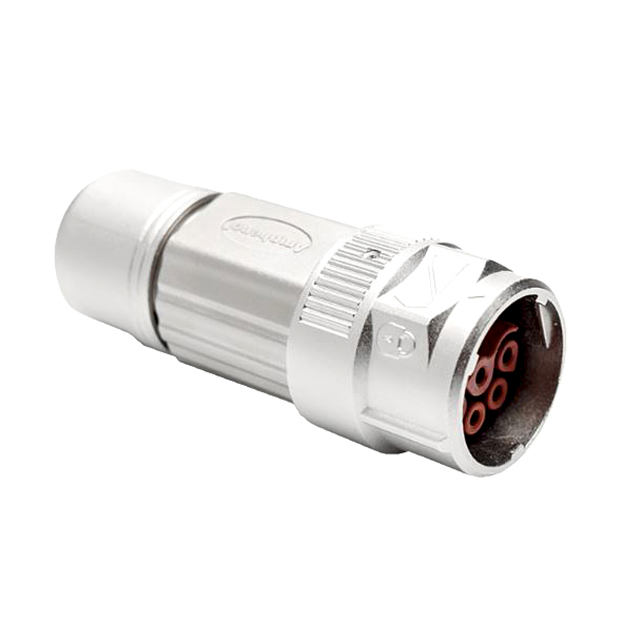

MB5CKN15H00-S3
CONN PLUG HSG FMALE 12POS INLINEManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Housings
Quality Control: Learn More
12 (6 + 4 Power + 1 Quadrax + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
Additional Information
Series: MotionGrade™ M23 Hybrid Series, Checkmate™ Quick LockingRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell |
| Packaging | Bulk |
| Connector Type | Plug Housing |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 12 (6 + 4 Power + 1 Quadrax + PE) |
| Type | For Female Sockets |
| Orientation | Keyed |
| Shell Size - Insert | M23-12 |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Contact Size | 1.0mm (6), 2.0mm Power (5), 0.6mm Quadrax (1) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Housing Color | Silver |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
