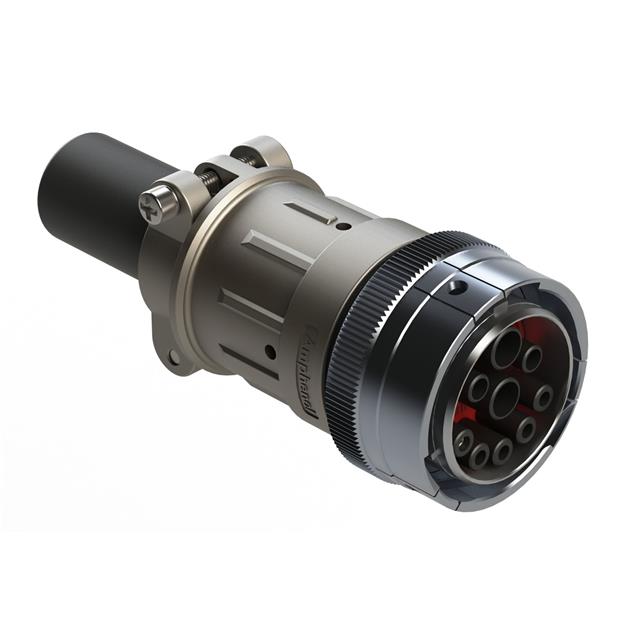

AHDBM06-24-91SR-059
SIZE 24, 9 POSITION ISOBUS PLUGManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Housings
Quality Control: Learn More
9 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
Additional Information
Series: DuraMate™ AHDBM ISOBUS 91RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Cable Clamp, Coupling Nut |
| Packaging | Box |
| Connector Type | Plug Housing |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 9 |
| Type | For Female Sockets |
| Orientation | Keyed |
| Shell Size - Insert | 24-91 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Contact Size | 8 (2), 12 (2), 16 (5) |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Housing Color | Silver |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Primary Material | Metal |
Request a Quote
Clients Also Buy

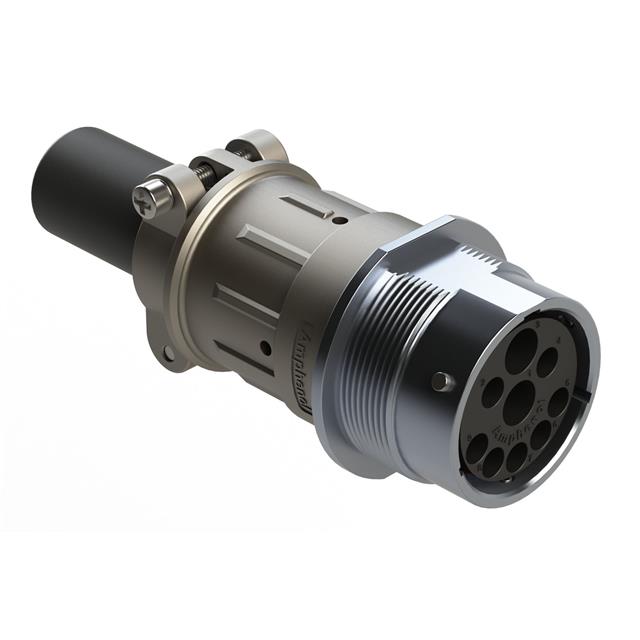

AHDBM04-24-91PN-059
SIZE 24, 9 POSITION ISOBUSRECEPT

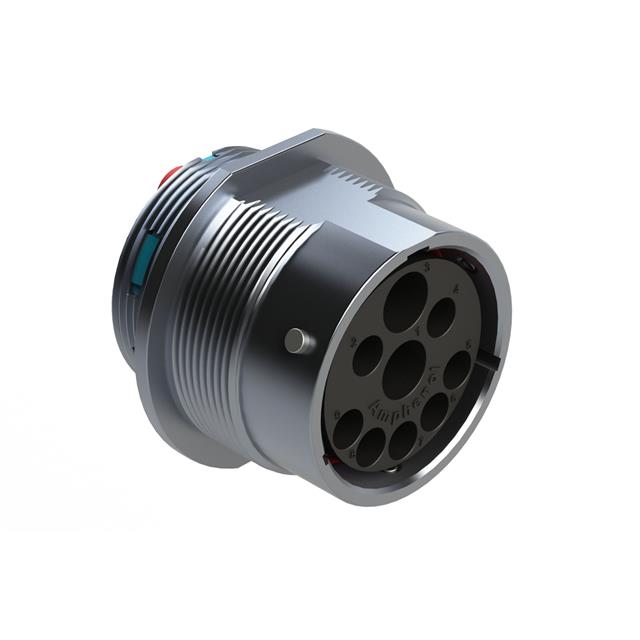

AHDBM04-24-91PR
