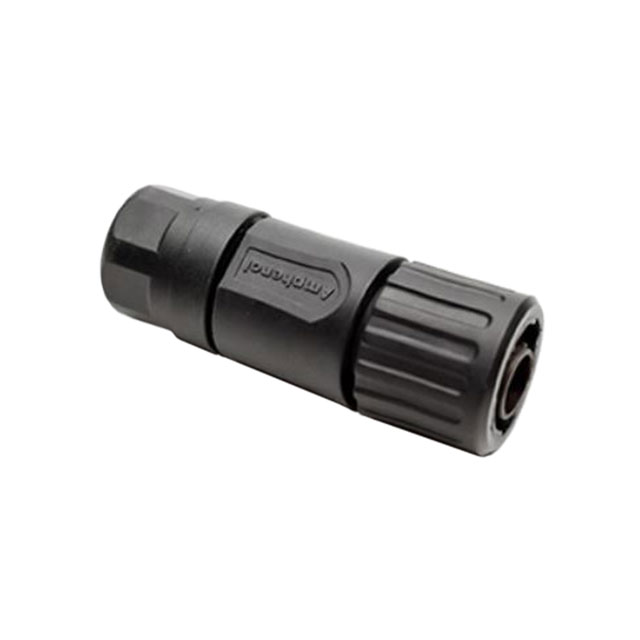

RTS6BS8N4P
CONN PLUG MALE 4P GOLD SLDR CUPManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Assemblies
Quality Control: Learn More
4 Position Circular Connector Plug, Male Pins Solder Cup
Additional Information
Series: ecomate® Aquarius™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Color | Black |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | 7A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 4 |
| Orientation | N (Normal) |
| Shell Size - Insert | 8-4 |
| Operating Temperature | -40°C ~ 105°C |
| Fastening Type | Bayonet Lock |
| Termination | Solder Cup |
| Ingress Protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Primary Material | Plastic |
