MA7RAP1201-KIT
CONN RCPT MALE 12POS GOLD CRIMPManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Assemblies
Quality Control: Learn More

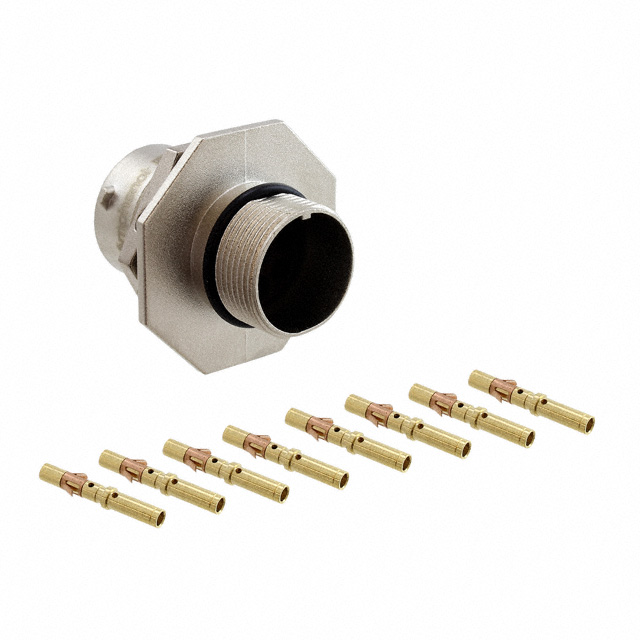

12 Position Circular Connector Receptacle, Male Pins Crimp
Additional Information
Series: MotionGrade™ Elite M23 Signal Series, ThreadedRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Rotatable |
| Packaging | Bulk |
| Connector Type | Receptacle, Male Pins |
| Color | Silver |
| Voltage Rating | 160V |
| Current Rating (Amps) | 10A |
| Mounting Type | Panel Mount, Right Angle |
| Number of Positions | 12 |
| Orientation | N (Normal) |
| Shell Size - Insert | M23-12 |
| Operating Temperature | -20°C ~ 130°C |
| Fastening Type | Threaded |
| Termination | Crimp |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Primary Material | Metal |
