C09131H0082025U
MALE CABLE CONNECTOR, QUICKLOCK,Manufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Assemblies
Quality Control: Learn More
8 Position Circular Connector Plug, Male Pins Solder Cup
Additional Information
Series: signalmate® C091 M16 Q (Quicklock)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Coupling Nut |
| Packaging | Box |
| Connector Type | Plug, Male Pins |
| Color | Black |
| Voltage Rating | 32V |
| Current Rating (Amps) | 7A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 8 |
| Orientation | Keyed |
| Shell Size - Insert | M16-8 |
| Operating Temperature | -40°C ~ 100°C |
| Fastening Type | Threaded |
| Termination | Solder Cup |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | 0.335"" ~ 0.413"" (8.50mm ~ 10.50mm) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Primary Material | Plastic |
Request a Quote
Clients Also Buy

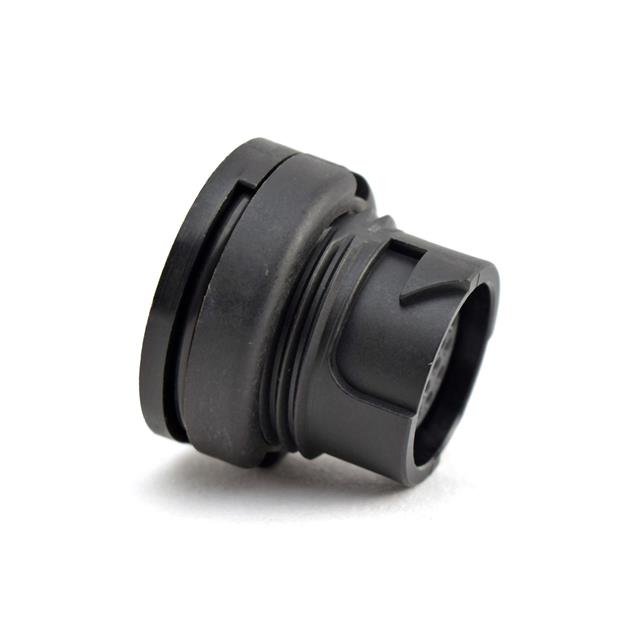

C09111G0040095U
FEMALE RECEPTACLE, QUICKLOCK, SI
C09111G0050005U
FEMALE RECEPTACLE, QUICKLOCK, SI

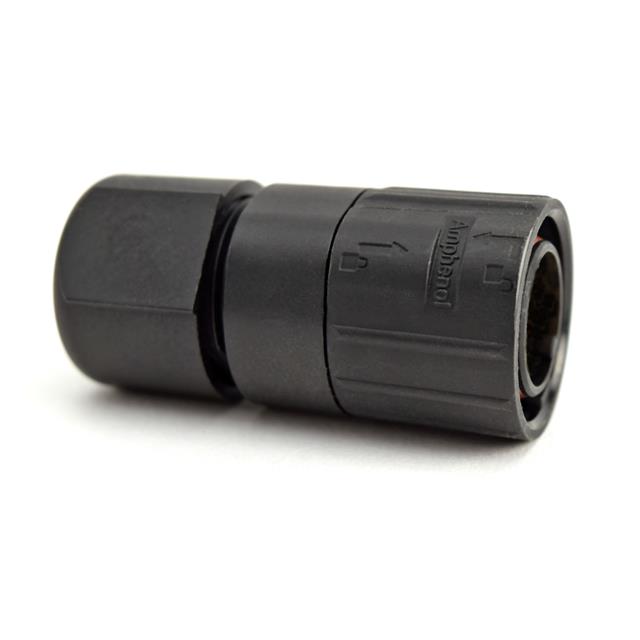

C09111H0040025U
