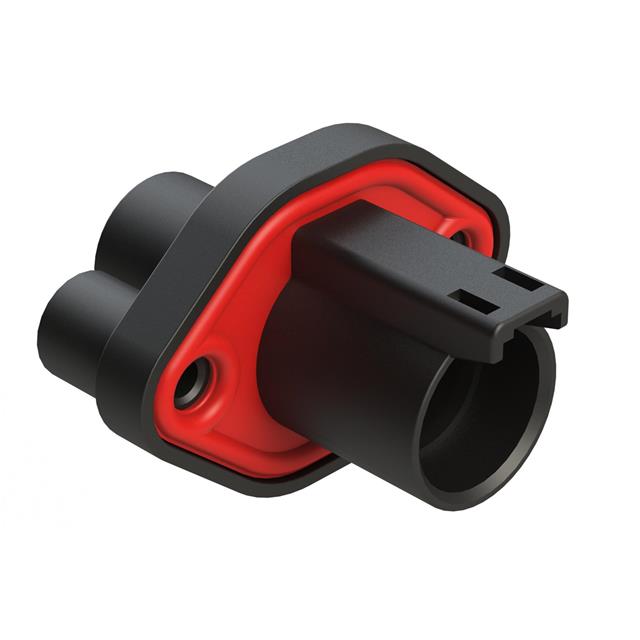

ATHD04-1-8P-PM11
SINGLE POLE, RECEPTACLE, PIN, SIManufacturer: Amphenol Sine Systems Corp
Categories: Circular Connector Assemblies
Quality Control: Learn More
1 (Power) Position Circular Connector Receptacle, Male Pins Crimp
Additional Information
Series: PanelMate™ ATHDRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Connector Type | Receptacle, Male Pins |
| Color | Black |
| Voltage Rating | 500V |
| Current Rating (Amps) | 25A |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Number of Positions | 1 (Power) |
| Orientation | Keyed |
| Shell Size - Insert | - |
| Operating Temperature | -55°C ~ 125°C |
| Fastening Type | Latch Lock |
| Termination | Crimp |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | 0.190"" ~ 0.240"" (4.83mm ~ 6.10mm) |
| Material Flammability Rating | - |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | - |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Primary Material | Plastic |
