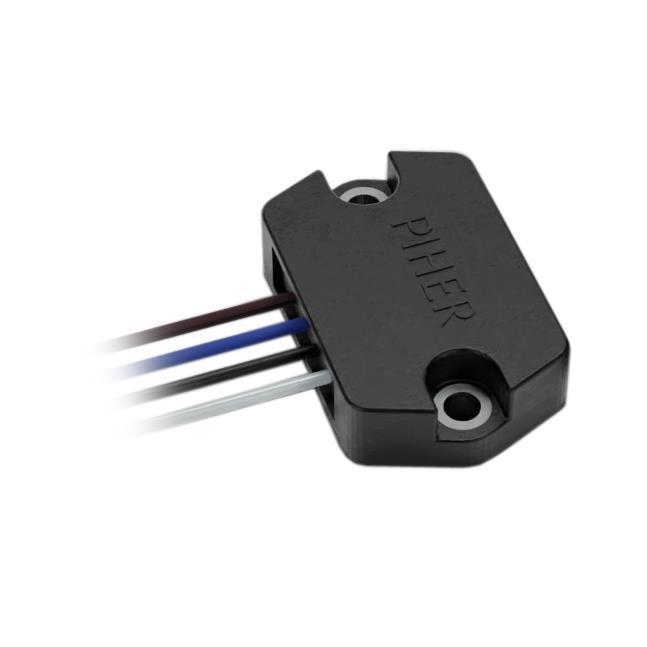

TSDA-A-IR025-HM-W
TILT SENSOR MEMS INCLINOMETER 25Manufacturer: Amphenol Piher Sensing Systems
Categories: Inclinometers
Quality Control: Learn More
Amphenol Piher Sensing Systems TSDA series TSDA-A-IR025-HM-W is a MEMS inclinometer module designed for precise angle measurement. This component offers a measuring range of ±25° across both the X and Y axes, with a 100Hz bandwidth suitable for dynamic applications. Featuring an analog output, it operates within a voltage rating of 8V to 36V and maintains functionality across an operating temperature range of -40°C to 85°C. The TSDA-A-IR025-HM-W is commonly utilized in industrial automation, automotive systems, and construction equipment where accurate tilt and inclination monitoring is critical.
Additional Information
Series: TSDARoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Output Type | Analog |
| Sensitivity | - |
| Interface | Analog |
| Axis | X, Y |
| Operating Temperature | -40°C ~ 85°C |
| Bandwidth | 100Hz |
| Measuring Range | ±25° |
| Grade | - |
| Voltage Rating | 8 V ~ 36 V |
| Qualification | - |
