PS2P-ARC-LA-M008-J-045S-RE
PLAY RESISTANT ARC POSITION SENSManufacturer: Amphenol Piher Sensing Systems
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Amphenol Piher Sensing Systems PS2P-ARC series magnetoresistive rotary position sensor, part number PS2P-ARC-LA-M008-J-045S-RE. This sensor utilizes a non-contact, external magnet actuation for robust operation and is designed for chassis mounting. It provides a CAN output signal with a clockwise increase over an electrical and mechanical rotation angle of 0° to 45°. Featuring ±1% linearity, the PS2P-ARC-LA-M008-J-045S-RE operates within a temperature range of -40°C to 125°C and requires a supply voltage of 4.5V to 5.5V. The component is supplied with a cable termination. This device is suitable for applications in automotive and industrial automation requiring precise, play-resistant angular measurement.
Additional Information
Series: PS2P-ARCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Box with Wire Leads |
| Mounting Type | Chassis Mount |
| Output | CAN |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Cable |
| Voltage - Supply | 4.5V ~ 5.5V |
| Linearity | ±1% |
| Linear Range | - |
| Actuator Type | External Magnet, Included |
| Technology | Magnetoresistive |
| Resistance Tolerance | - |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 45° |
| Output Signal | Clockwise Increase |
| Grade | - |
| Programmable | - |
| Qualification | - |
Request a Quote
Clients Also Buy
PS2P-ARC-CE-M008-A-090S-05
PLAY RESISTANT ARC POSITION SENS
PS2P-ARC-CE-M008-A-110S-05
ARC ANGULAR SENSOR, 12 BIT, ABSO

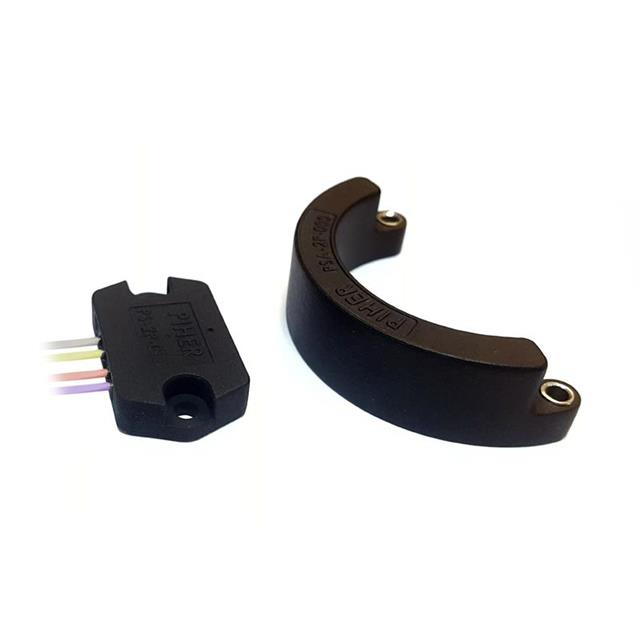

PS2P-ARC-CE-M008-A-45S-05
