MTS360-1S-C0000-ERA360-05K
SENSOR ANGLE 360DEG SMDManufacturer: Amphenol Piher Sensing Systems
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Amphenol Piher Sensing Systems MTS360 Series Hall Effect sensor for 360-degree angle measurement. This device, part number MTS360-1S-C0000-ERA360-05K, offers a linear output with 1% linearity over its full 0° to 360° electrical and mechanical rotation range. It utilizes Hall Effect technology and provides a digital SPI output signal with clockwise increase. The sensor is designed for surface mounting with SMD (SMT) tab termination and is housed in a 16-SMD Module, 8 Leads package. Operating within a voltage supply range of 4.5V to 5V, it maintains functionality across an extended operating temperature range of -40°C to 125°C. This component is suitable for applications in automotive, industrial automation, and consumer electronics requiring precise rotary position sensing.
Additional Information
Series: MTS360RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-SMD Module, 8 Leads |
| Mounting Type | Surface Mount |
| Output | SPI |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.5V ~ 5V |
| Linearity | ±1% |
| Linear Range | - |
| Actuator Type | Hole for Shaft |
| Technology | Hall Effect |
| Resistance Tolerance | - |
| For Measuring | Angle, Linear, Rotary |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360° |
| Output Signal | Clockwise Increase |
| Programmable | - |
Request a Quote
Clients Also Buy

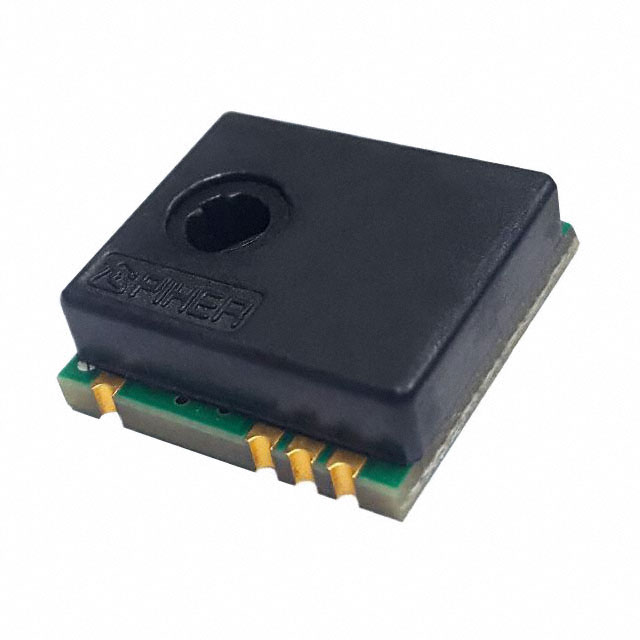

MTS360-1A-C0000-ERA360-05K
