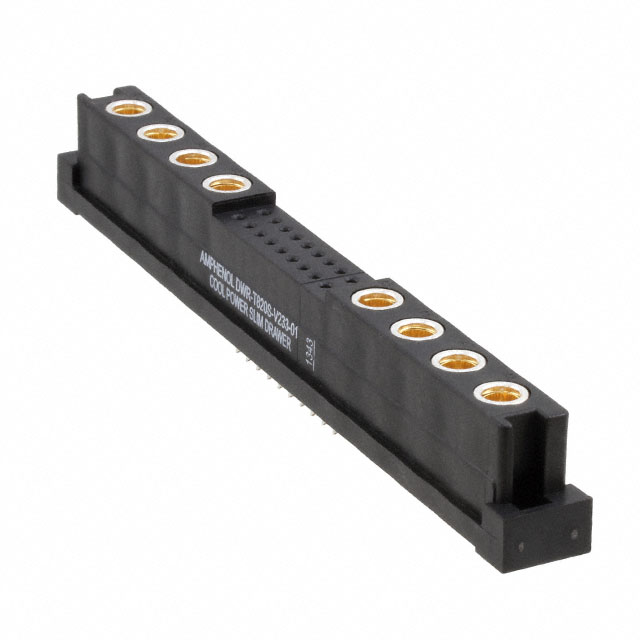

DWRT820SV23301
CONN RCPT DRAWER 28POS PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More
28 Connector Receptacle, Female Sockets Through Hole, Right Angle Black Drawer
Additional Information
Series: DWR, CoolPower®RoHS Status: Request inventory verificationManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=DWRT820SV23301&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, Mating Guide |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Pitch | 0.108"" (2.74mm) |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | Backplane |
| Connector Style | Drawer |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 20 Signal, 8 Power |
| Number of Columns | - |
